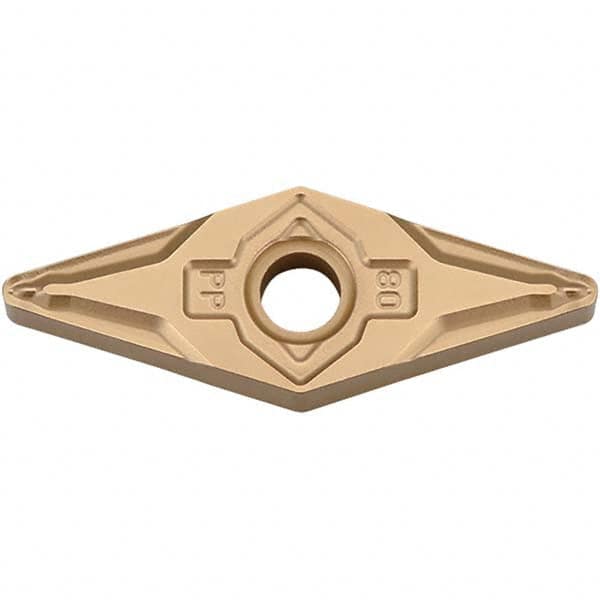

Kyocera - VNMG3305 PP Grade CCX Cermet Turning Insert
Item #: 96190483
Brand: Kyocera
Model #: 8863168
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 3305 |
| Material | Cermet |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | CCX |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | PP |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | VNMG160402PP |
| Rake | Negative |
| Coating Process | CVD |
| Manufacturers Catalog Number | VNMG3305PP CCX |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 35 |
| Insert Hand | Neutral |
| Series | VNMG |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Copying, Facing, Undercutting |
| MultiUseTool | Yes |
| Shape | Diamond |
