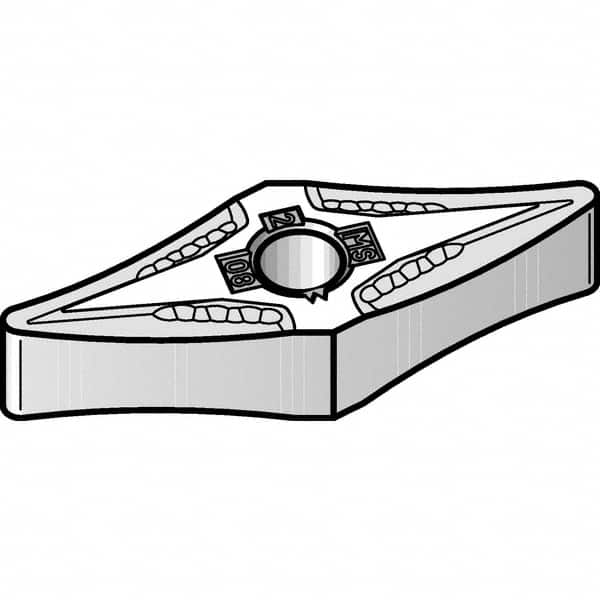

Kennametal - 330VNMG MS Grade KCS10B Carbide Turning Insert
Item #: 12256129
Brand: Kennametal
Model #: 6687127
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 330 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6538 |
| Inscribed Circle (Decimal Inch) | 0.1500 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KCS10B |
| Coating | AlTiN |
| Material Grade | KCS10B |
| Chip Breaker | MS |
| Insert Length (Decimal Inch) | 0.6538 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | VNMG160402MS |
| Manufacturers Catalog Number | VNMG3305MS |
| Shape | Diamond/Rhombic |
