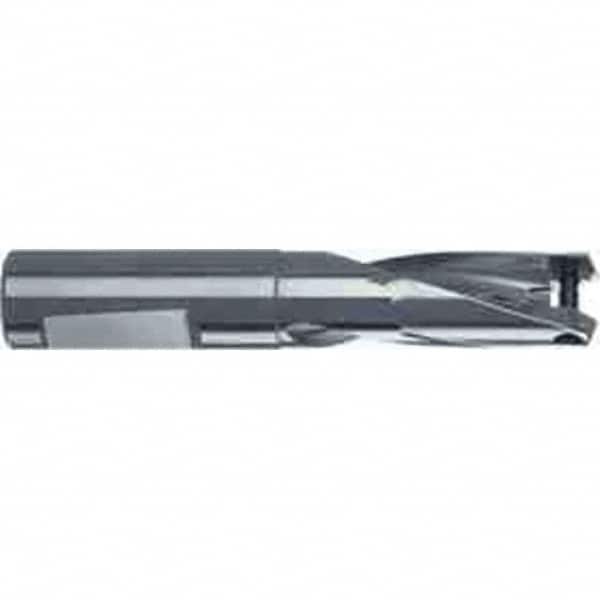

Guhring - 38mm Max Diam, 1.5xD, 32mm Shank Diam, 191mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 38.000 HT800 Toolholder, Series 4106
Item #: 98842883
Brand: Guhring
Model #: 9041060380000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4106 |
| Maximum Drill Diameter (mm) | 38.00 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 65.20 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 380 |
| Toolholder Style | 38.000 HT800 |
| Shank Type | Whistle Notch |
| Overall Length (mm) | 191.00 |
| Shank Length (mm) | 125.80 |
