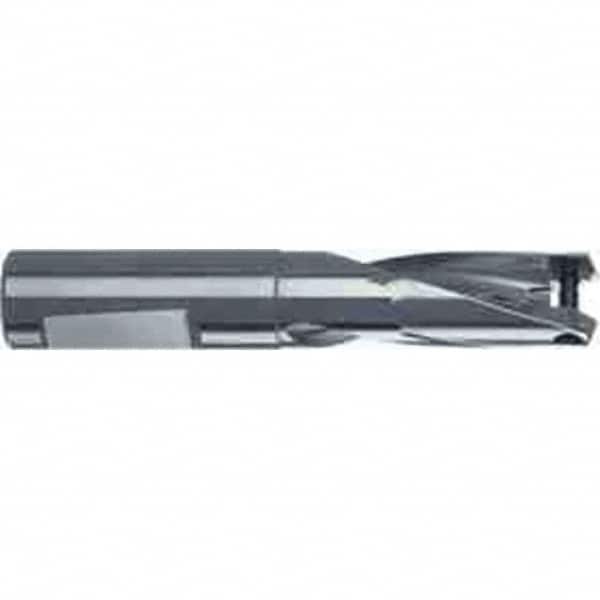

Guhring - 35.5mm Max Diam, 1.5xD, 31.75mm Shank Diam, 181mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 35.005 HT800 Toolholder, Series 4106
Item #: 98841224
Brand: Guhring
Model #: 9041060350050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4106 |
| Maximum Drill Diameter (mm) | 35.50 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 60.20 |
| Shank Diameter (mm) | 31.75 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 350 |
| Toolholder Style | 35.005 HT800 |
| Shank Type | Whistle Notch |
| Overall Length (mm) | 181.00 |
| Shank Length (mm) | 174.80 |
