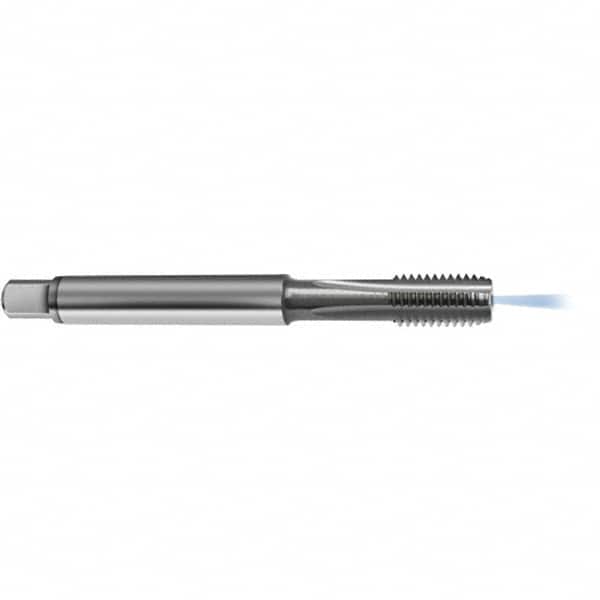

Guhring - M6x1.00 Metric 6HX 4 Flute Bright Finish Solid Carbide Straight Flute Standard Hand Tap - Plug, Right Hand Thread, 80mm OAL, D5/D6 Limit, Through Coolant
Item #: 98840523
Brand: Guhring
Model #: 9010080060000
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M6x1.00 |
| Class of Fit | 6HX |
| Thread Limit | D5/D6 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | Solid Carbide |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | Metric |
| Overall Length (mm) | 80.00 |
| Series/List | 1008 |
| Neck Length (mm) | 30.00 |
| Tapping Depth (mm) | 30 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (mm) | 50 |
| Square Size (mm) | 4.90 |
| Material Application | Aluminum; Cast Iron; Hardened Steel; Steel |
