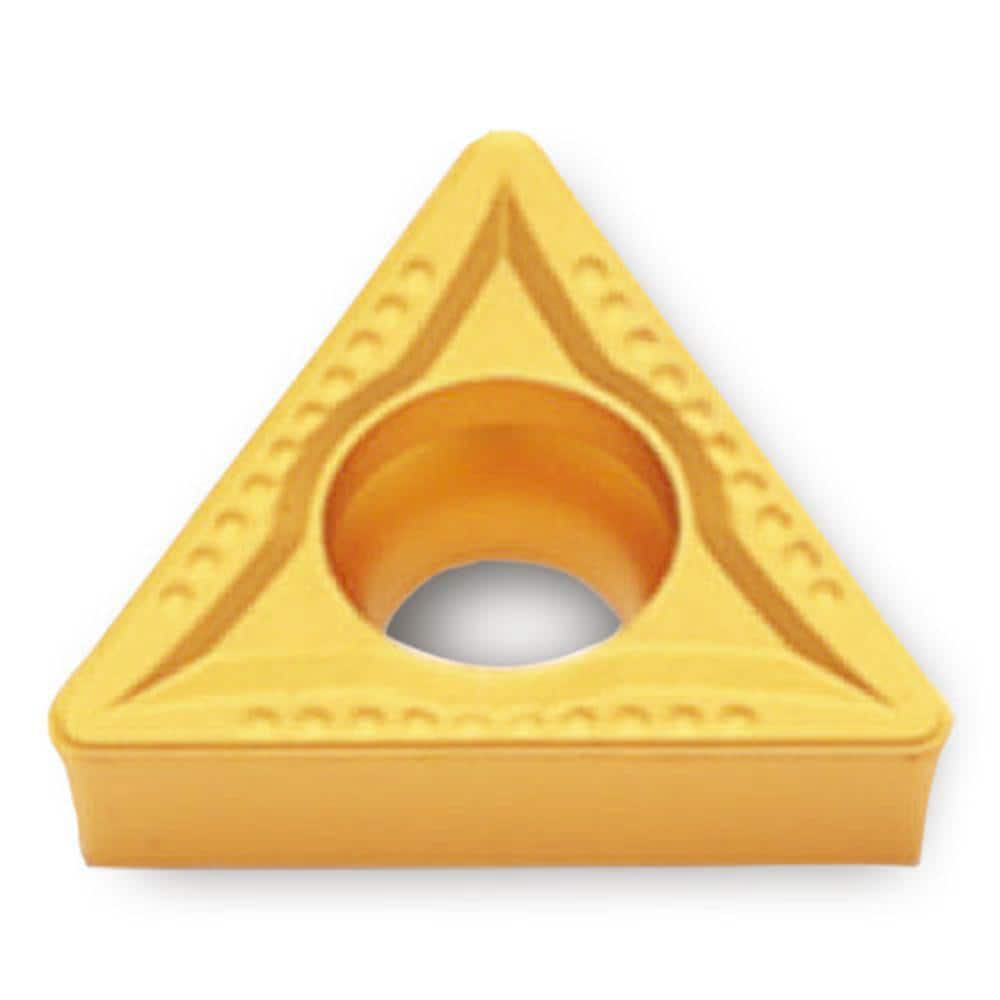

Turning Insert: TCMT21.51MT TT7005, Solid Carbide TiCN & Al2O3 Finish, Neutral, 0.4330″ Long, 1/4″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TCMT
Item #: 98739246
Brand: Ingersoll Cutting Tools
Model #: 5523754
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 21.51 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT7005 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | TCMT |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4330 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | TCMT21.51MTTT7005 |
| Iso Code | TCMT110204MT TT7005 |
| Chip Breaker | MT |
| Width (Decimal Inch - 4 Decimals) | 0.4330 |
| Coating/Finish | TiCN; Al2O3 |
