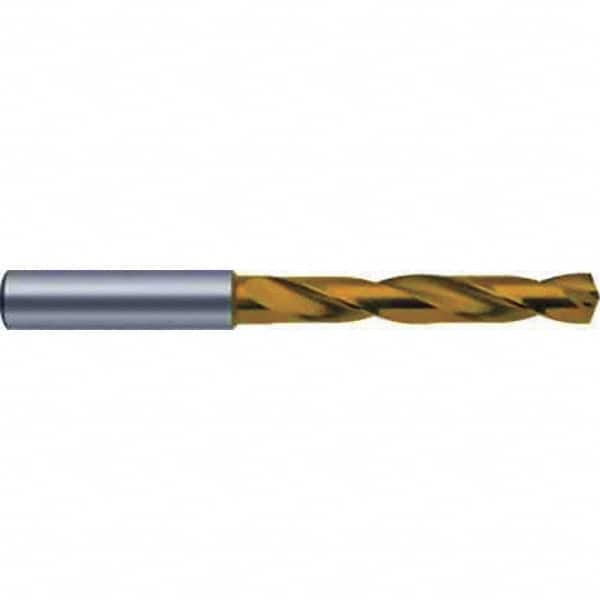

Guhring - 9.25mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - TiN Finish, Right Hand Cut, 61mm Flute Length, 103mm OAL, SF Point, Straight Shank, Through Coolant
Item #: 98696768
Brand: Guhring
Model #: 9016620092500
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3642 |
| Drill Bit Size (mm) | 9.25 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 61.00 |
| Overall Length (mm) | 103.00 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | SF Point |
| Shank Diameter (mm) | 10.00 |
| Specification Designation | DIN |
| Shank Length (mm) | 42.00 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 61.00 |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Specification Number | DIN 6535HA |
| Through Coolant | Yes |
| Drill Bit Grade | High Performance |
| Series/List | 662 |
| Length Type | RT100F |
