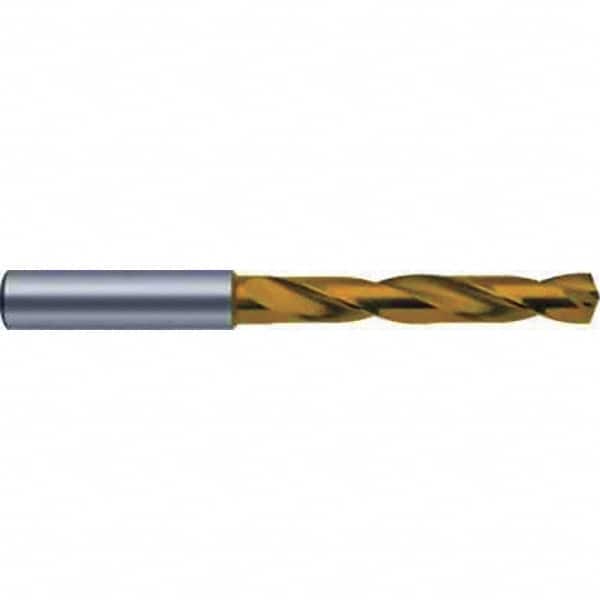

Screw Machine Length Drill Bit: 0.622″ Dia, 140 °, Solid Carbide TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 662
Item #: 98696727
Brand: Guhring
Model #: 9016620158000
Product Specifications
| Drill Bit Size (mm) | 15.80 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Point Type | SF |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Drill Bit Size (Decimal Inch) | 0.6220 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Shank Diameter (mm) | 16.00 |
| Series | 662 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.00 |
| Drill Point Length (mm) | 83.00 |
| Flute By Diameter Ratio | 5xD |
| Drill Bit Diameter Tolerance | m7 |
| Flute Length (mm) | 83.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 13.50 to 17.00 |
| Specification Number | DIN 6535HA |
| Specification Designation | DIN |
