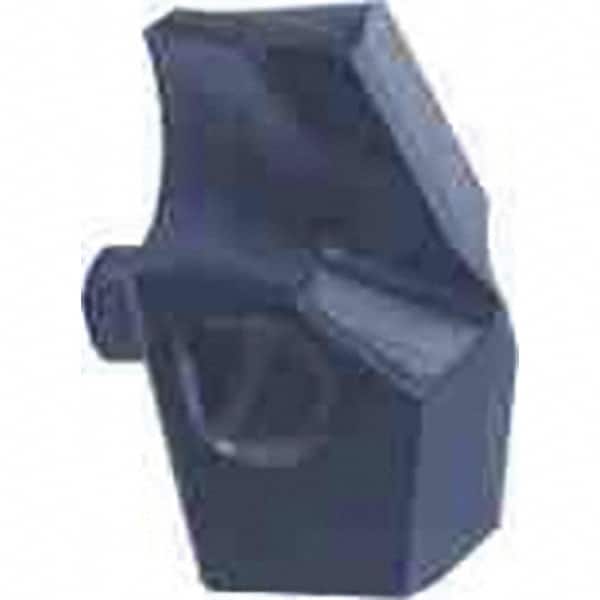

Guhring - Series 4111, 39mm Diam 145° Replaceable Drill Tip - Carbide, nano-A Finish, 360 (Pilot Drill Holder), 390 (Drill Holder) Seat Size
Item #: 98696164
Brand: Guhring
Model #: 9041110390000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Nano-A combines TiAlN and AlTiN coatings in a micro-layer structure that is harder and more wear resistant. It is used at high speeds on alloy steels, stainless steels and aerospace materials. Nano-A is a proprietary coating exclusive to Guhring, Inc.
| Product Specifications | |
|---|---|
| Diameter (mm) | 39.00 |
| Diameter (Decimal Inch) | 1.5354 |
| Included Angle | 145 |
| Material | Carbide |
| Series | 4111 |
| Coating | nano-A |
| Insert Seat Size | 360 (Pilot Drill Holder); 390 (Drill Holder) |
| Through Coolant | No |
| Height (mm) | 23.20 |
| Width (mm) | 16.00 |
