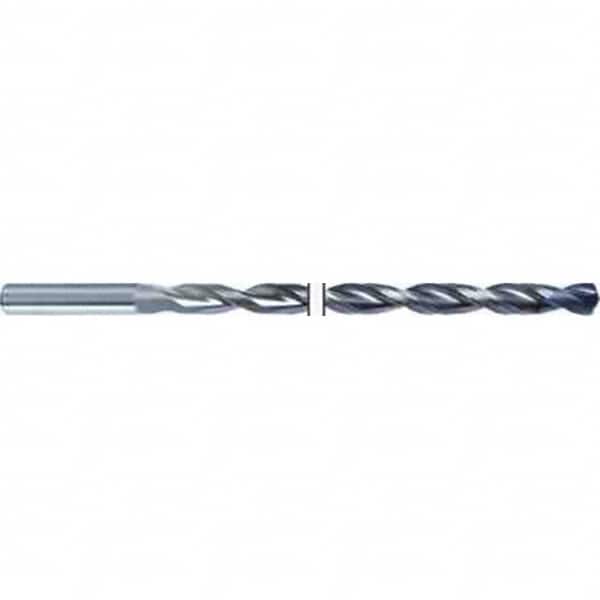

Screw Machine Length Drill Bit: 0.433″ Dia, 135 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 6511
Item #: 98694839
Brand: Guhring
Model #: 9065110110000
Product Specifications
| Drill Bit Size (mm) | 11.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 135 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Bit Size (Decimal Inch) | 0.4330 |
| Overall Length (mm) | 302.00 |
| Overall Length (Decimal Inch) | 11.8898 |
| Shank Diameter (mm) | 12.00 |
| Series | 6511 |
| Web Thinning | Web-Thinned |
| Shank Length (Decimal Inch) | 1.9291 |
| Shank Length (mm) | 49.00 |
| Drill Point Length (mm) | 253.00 |
| Flute By Diameter Ratio | 20xD |
| Drill Bit Diameter Tolerance | h7 |
| Flute Length (mm) | 253.00 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
| Specification Number | DIN 6535HA |
| Specification Designation | DIN |
