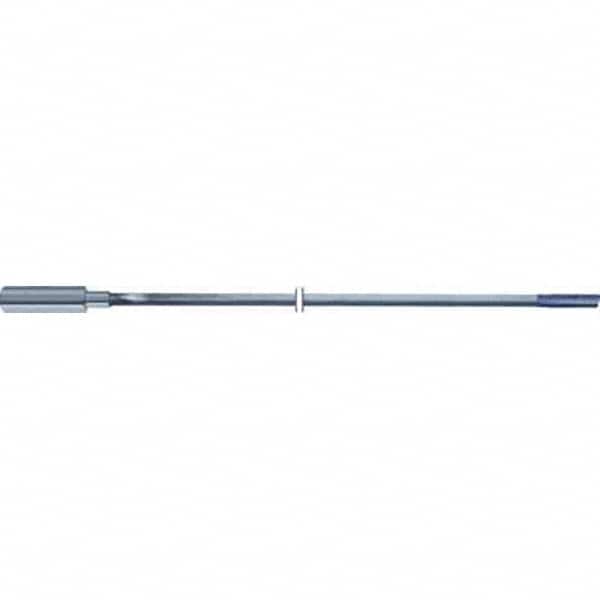

Die Drill Bit: 3/16″ Dia, Solid Carbide nano-A Finish, Series 5648
Item #: 98693757
Brand: Guhring
Model #: 9056480047600
Product Specifications
| DrillType | Single Flute Gun |
| Drill Size (Decimal) | 4.76 mm; 0.1874; 0.1874 in |
| Drill Size (Inch) | 3/16 |
| Drill Size (Metric) | 4.76 |
| Drill/Shank Material | Solid Carbide |
| Flute Length (Metric) | 485.00 |
| Flute Length (Inch) | 485.0 mm |
| Depth of Cut (Metric) | 477.86 |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Kidney |
| Shank Diameter (Inch) | 6.0 mm |
| Shank Diameter (Metric) | 6.00 |
| Shank Diameter (Decimal) | 6.0 mm |
| Shank Length (Metric) | 40.00; 40.0 mm |
| Point Type | Standard |
| OverallLength (Decimal) | 525.0 mm |
| Overall Length (Metric) | 525.00 |
| Finish/Coating | nano-A (Tip) |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance (Metric) | h5 |
| Flute Length x Diameter Ratio | 75xD |
| Drill Bit Grade | High Performance |
| Series/List | 5648 |
