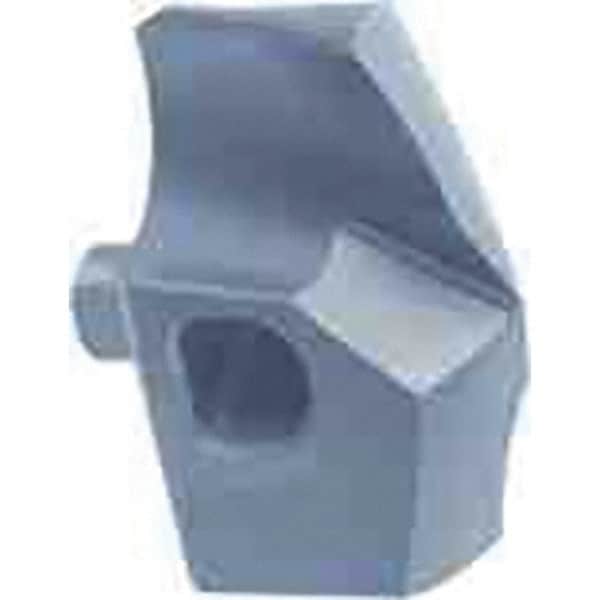

Guhring - Series 4114, 1-33/64" Diam 140° Replaceable Drill Tip - Carbide, Uncoated, 360 (Pilot Drill Size), 380 (Drill Hole Size), Through Coolant
Item #: 98693575
Brand: Guhring
Model #: 9041140385000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Diameter (mm) | 38.50 |
| Diameter (Decimal Inch) | 1.5157 |
| Diameter (Inch) | 1-33/64 |
| Included Angle | 140 |
| Material | Carbide |
| Series | 4114 |
| Coating | Uncoated |
| Insert Seat Size | 360 (Pilot Drill Size); 380 (Drill Hole Size) |
| Through Coolant | Through Coolant |
| Height (mm) | 23.90 |
| Width (mm) | 16.00 |
