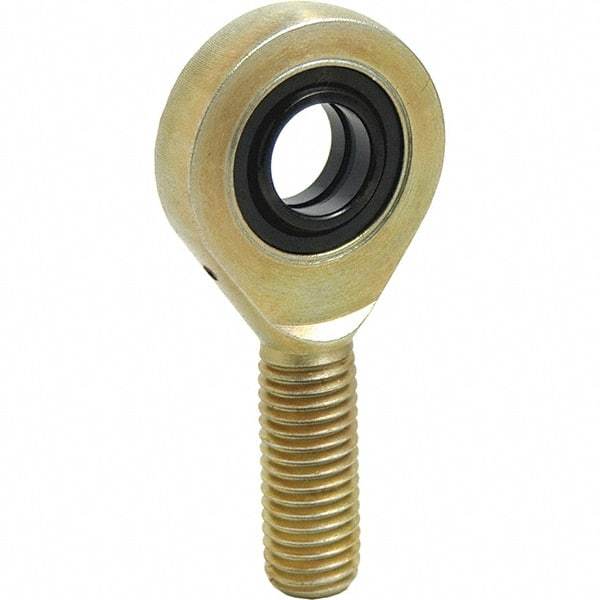

Tritan - 0.4724" ID, 2-1/8" Max OD, 5,171 Lb Max Static Cap, Male Spherical Rod End - M12 LH, 0.3937" Shank Diam, 1.1024" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 98573330
Brand: Tritan
Model #: SAL 12E
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.4724 |
| Inside Diameter (mm) | 12.0000 |
| Inside Diameter (Inch) | 0.472 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 2.1260 |
| Maximum Outside Diameter (mm) | 54.00 |
| Maximum Outside Diameter (Inch) | 2 |
| Maximum Outside Diameter (Inch) | 2.1260 |
| Maximum Static Load Capacity (Pounds) | 5171.0 |
| Width (Inch) | 1.340 |
| Width (Decimal Inch) | 1.3400 |
| Width (mm) | 34.00 |
| Thread Size | M12 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (Inch) | 0.394 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 28.000 |
| Thread Direction | Left Hand |
| Overall Length (Inch) | 3.460 |
| Overall Length (mm) | 87.9000 |
| Overall Length (Decimal Inch) | 3.4600 |
