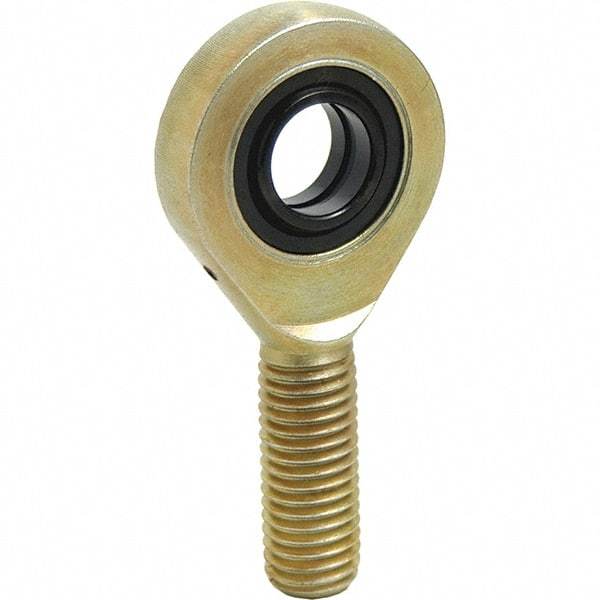

Tritan - 0.3937" ID, 1.8898" Max OD, 3,597 Lb Max Static Cap, Male Spherical Rod End - M10 LH, 0.3543" Shank Diam, 1.0236" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 98573116
Brand: Tritan
Model #: SAL 10E
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.3937 |
| Inside Diameter (mm) | 10.0000 |
| Inside Diameter (Inch) | 0.394 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 1.8898 |
| Maximum Outside Diameter (mm) | 48.00 |
| Maximum Outside Diameter (Inch) | 2 |
| Maximum Outside Diameter (Inch) | 1.8898 |
| Maximum Static Load Capacity (Pounds) | 3597.0 |
| Width (Inch) | 1.140 |
| Width (Decimal Inch) | 1.1400 |
| Width (mm) | 29.00 |
| Thread Size | M10 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 9.0000 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (Inch) | 0.354 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 1.0236 |
| Shank Length (mm) | 26.000 |
| Thread Direction | Left Hand |
| Overall Length (Inch) | 3.030 |
| Overall Length (mm) | 77.0000 |
| Overall Length (Decimal Inch) | 3.0300 |
