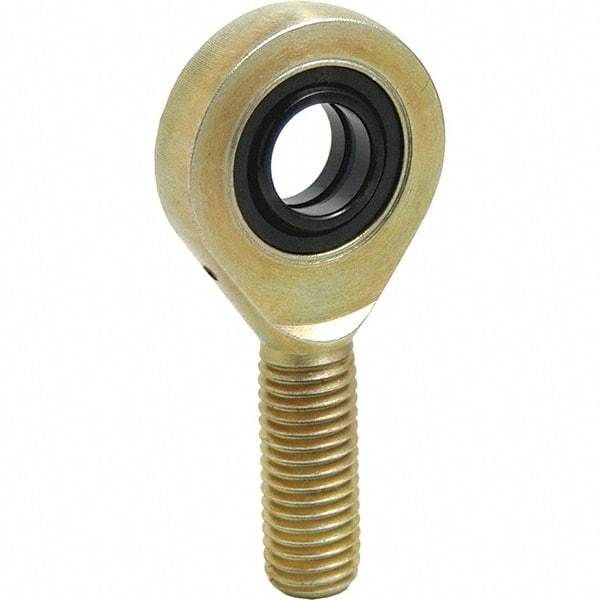

Tritan - 1.378" ID, 5.5118" Max OD, 32,822 Lb Max Static Cap, Male Spherical Rod End - M36x3 RH, 63/64" Shank Diam, 3.2283" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 98573090
Brand: Tritan
Model #: SA 35ES 2RS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 1.3780 |
| Inside Diameter (mm) | 35.0000 |
| Inside Diameter (Inch) | 1.378 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 5.5118 |
| Maximum Outside Diameter (mm) | 140.00 |
| Maximum Outside Diameter (Inch) | 6 |
| Maximum Outside Diameter (Inch) | 5.5118 |
| Maximum Static Load Capacity (Pounds) | 32822.0 |
| Width (Inch) | 0.830 |
| Width (Decimal Inch) | 0.8300 |
| Width (mm) | 21.10 |
| Thread Size | M36x3 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 25.0000 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (Inch) | 0.984 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 3.2283 |
| Shank Length (mm) | 82.000 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 8.740 |
| Overall Length (mm) | 222.0000 |
| Overall Length (Decimal Inch) | 8.7400 |
