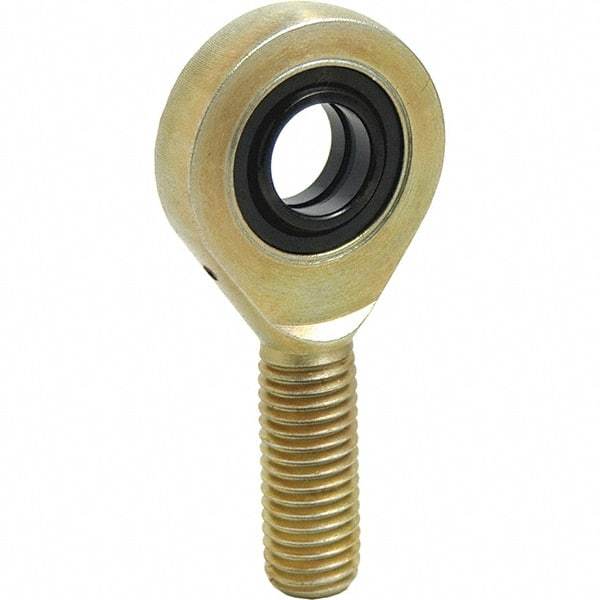

Tritan - 2.3622" ID, 8.2677" Max OD, 101,164 Lb Max Static Cap, Male Spherical Rod End - M52x3 RH, 1.7323" Shank Diam, 4.5276" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 98573033
Brand: Tritan
Model #: SAA 60ES 2RS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 2.3622 |
| Inside Diameter (mm) | 60.0000 |
| Inside Diameter (Inch) | 2.362 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 8.2677 |
| Maximum Outside Diameter (mm) | 210.00 |
| Maximum Outside Diameter (Inch) | 8 |
| Maximum Outside Diameter (Inch) | 8.2677 |
| Maximum Static Load Capacity (Pounds) | 101164.0 |
| Width (Inch) | 5.310 |
| Width (Decimal Inch) | 5.3100 |
| Width (mm) | 134.90 |
| Thread Size | M52x3 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 44.0000 |
| Shank Diameter (Decimal Inch) | 1.7323 |
| Shank Diameter (Inch) | 1.732 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 4.5276 |
| Shank Length (mm) | 115.000 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 13.580 |
| Overall Length (mm) | 344.9000 |
| Overall Length (Decimal Inch) | 13.5800 |
