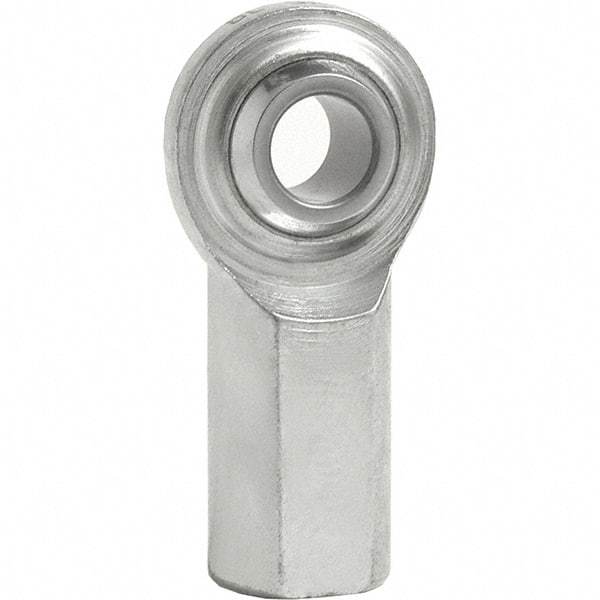

Tritan - 0.19" ID, 2,000 Lb Max Static Cap, Female Spherical Rod End - 10-32 UNF RH, 5/16" Shank Diam, 1/2" Shank Length, Zinc Plated Carbon Steel with PTFE Lined Chrome Steel Raceway
Item #: 98572787
Brand: Tritan
Model #: CF 3T
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.1900 |
| Inside Diameter (mm) | 4.8000 |
| Inside Diameter (Inch) | 0.190 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.0000 |
| Maximum Outside Diameter (mm) | 0.00 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Static Load Capacity (Pounds) | 2000.0 |
| Width (Inch) | 5/8 |
| Width (Decimal Inch) | 0.6250 |
| Width (mm) | 15.90 |
| Thread Size | 10-32 UNF |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 7.9000 |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Shank Diameter (Inch) | 0.312 |
| Raceway Material | PTFE Lined Chrome Steel |
| Shank Length (Decimal Inch) | 0.5000 |
| Shank Length (mm) | 12.700 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 1.370 |
| Overall Length (mm) | 34.8000 |
| Overall Length (Decimal Inch) | 1.3700 |
