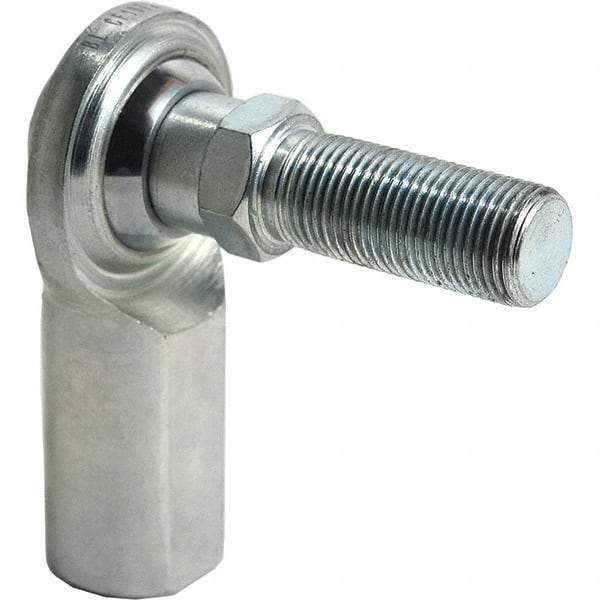

Tritan - 3/8" ID, 5,100 Lb Max Static Cap, Female Spherical Rod End - 3/8-24 UNF RH, 1/2" Shank Diam, 13/16" Shank Length, Zinc Plated Carbon Steel with Low Carbon Steel Raceway
Item #: 98572639
Brand: Tritan
Model #: CF 6S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.3750 |
| Inside Diameter (mm) | 9.5000 |
| Inside Diameter (Inch) | 3/8 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.0000 |
| Maximum Outside Diameter (mm) | 0.00 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Static Load Capacity (Pounds) | 5100.0 |
| Width (Inch) | 1 |
| Width (Decimal Inch) | 1.0000 |
| Width (mm) | 25.40 |
| Thread Size | 3/8-24 UNF |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 12.7000 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Raceway Material | Low Carbon Steel |
| Shank Length (Decimal Inch) | 0.8120 |
| Shank Length (mm) | 20.600 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 2.130 |
| Overall Length (mm) | 54.1000 |
| Overall Length (Decimal Inch) | 2.1300 |
