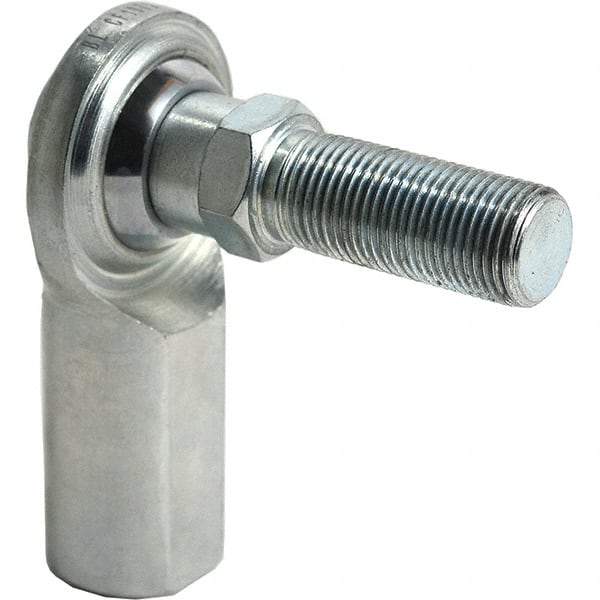

Tritan - 5/16" ID, 3,934 Lb Max Static Cap, Female Spherical Rod End - 5/16-24 UNF RH, 7/16" Shank Diam, 11/16" Shank Length, Zinc Plated Carbon Steel with Low Carbon Steel Raceway
Item #: 98572597
Brand: Tritan
Model #: CF 5S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.3125 |
| Inside Diameter (mm) | 7.9000 |
| Inside Diameter (Inch) | 5/16 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.0000 |
| Maximum Outside Diameter (mm) | 0.00 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Static Load Capacity (Pounds) | 3934.0 |
| Width (Inch) | 7/8 |
| Width (Decimal Inch) | 0.8750 |
| Width (mm) | 22.20 |
| Thread Size | 5/16-24 UNF |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 11.1000 |
| Shank Diameter (Decimal Inch) | 0.4370 |
| Shank Diameter (Inch) | 0.437 |
| Raceway Material | Low Carbon Steel |
| Shank Length (Decimal Inch) | 0.6870 |
| Shank Length (mm) | 17.400 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 1.810 |
| Overall Length (mm) | 46.0000 |
| Overall Length (Decimal Inch) | 1.8100 |
