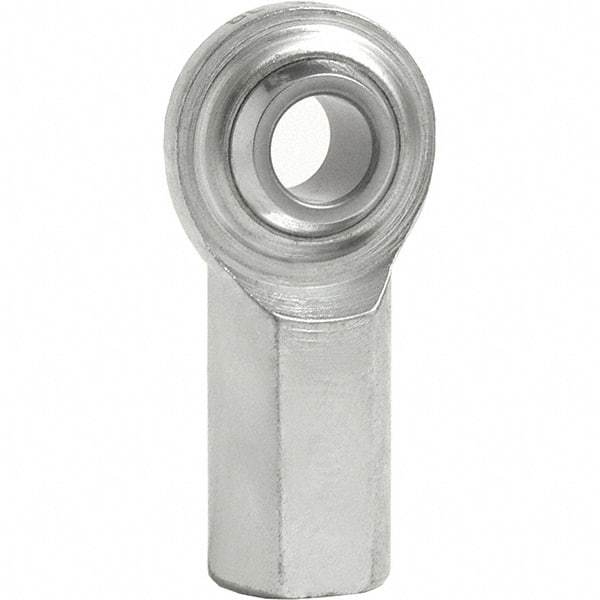

Tritan - 7/16" ID, 6,420 Lb Max Static Cap, Female Spherical Rod End - 7/16-20 UNF RH, 9/16" Shank Diam, 15/16" Shank Length, Zinc Plated Carbon Steel with Low Carbon Steel Raceway
Item #: 98572456
Brand: Tritan
Model #: CF 7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.4375 |
| Inside Diameter (mm) | 11.1000 |
| Inside Diameter (Inch) | 7/16 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.0000 |
| Maximum Outside Diameter (mm) | 0.00 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Static Load Capacity (Pounds) | 6420.0 |
| Width (Inch) | 1-1/8 |
| Width (Decimal Inch) | 1.1250 |
| Width (mm) | 28.60 |
| Thread Size | 7/16-20 UNF |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 14.3000 |
| Shank Diameter (Decimal Inch) | 0.5620 |
| Shank Diameter (Inch) | 0.562 |
| Raceway Material | Low Carbon Steel |
| Shank Length (Decimal Inch) | 0.9370 |
| Shank Length (mm) | 23.800 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 2.370 |
| Overall Length (mm) | 60.2000 |
| Overall Length (Decimal Inch) | 2.3700 |
