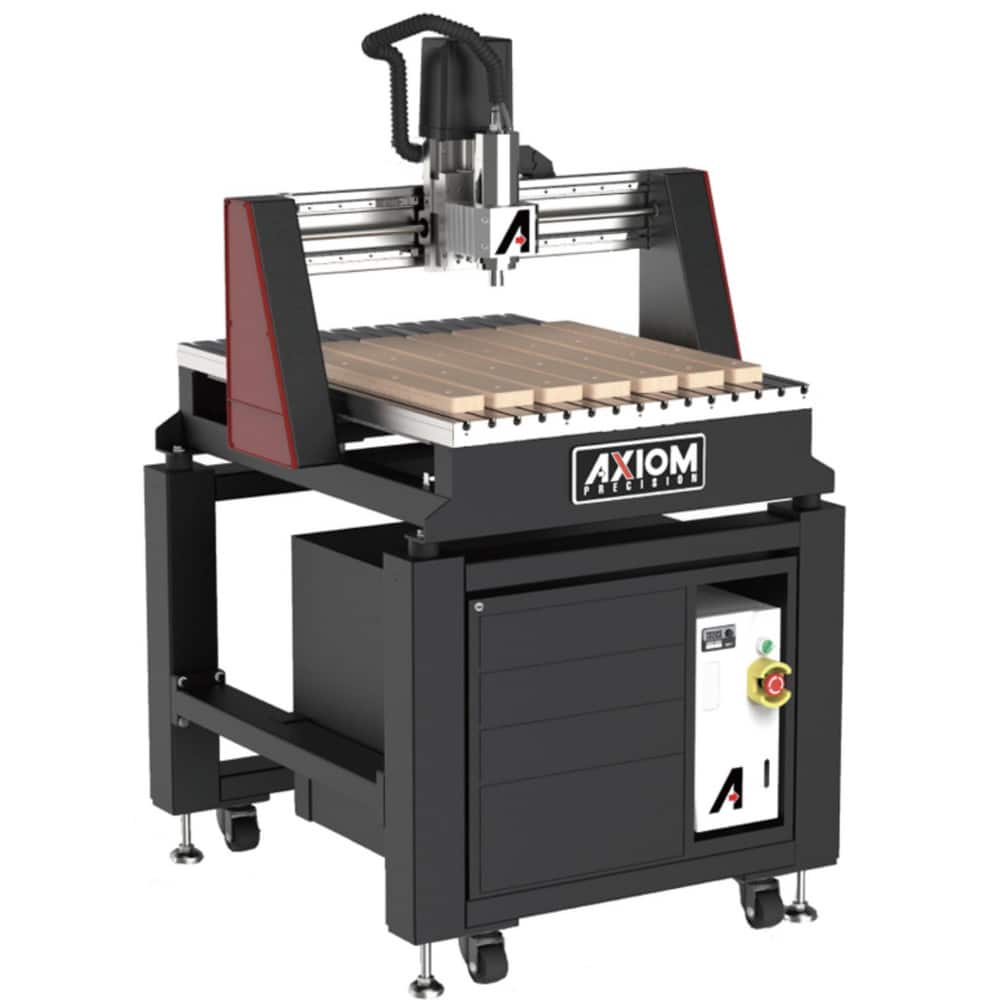

CNC Routers; X Axis Travel Length (Decimal Inch): 24.0000; Y Axis Travel Length (Decimal Inch): 35.8200; Z Axis Travel Length (Decimal Inch): 5.9000; Spindle Speed (RPM): 24000.00; Spindle Power (Watts): 2200; Rapid Feed Rate (IPM): 300; Rapid Feed Rate (
Item #: 98339690
Brand: Axiom
Model #: AR6PRO V5
Product Specifications
| X Axis Travel Length (Decimal Inch) | 24.0000 |
| Y Axis Travel Length (Decimal Inch) | 35.8200 |
| Z Axis Travel Length (Decimal Inch) | 5.9000 |
| Spindle Speed (RPM) | 24000.00 |
| Spindle Power (Watts) | 2200 |
| Rapid Feed Rate (IPM) | 300 |
| Rapid Feed Rate (MPM) | 5 |
| Resolution | +/- .00393 Inches (0.10mm) |
| Voltage | 220 |
| Collet Sizes | 1/4 & 1/8 Inches |
| Controller | RichAuto B11 DSP |
| Gantry Clearance With Spoilboard (Inch) | 5.5 |
| Ball Screw Size (mm) | 16mm |
| Gantry Clearance Without Spoilboard (Inch) | 6.5 |
| Gantry Bridge Material | Aluminum |
| Amperage | 10 |
| Gantry Support Material | Aluminum |
| Base Material | Steel |
| Table Material | Aluminum |
| Overall Height (Decimal Inch - 4 Decimals) | 30.2700 |
| Overall Width (Decimal Inch - 4 Decimals) | 37.3600 |
| Overall Length (Decimal Inch) | 51.1800 |
| Includes | 1/4 & 1/8 Inches Collets |
