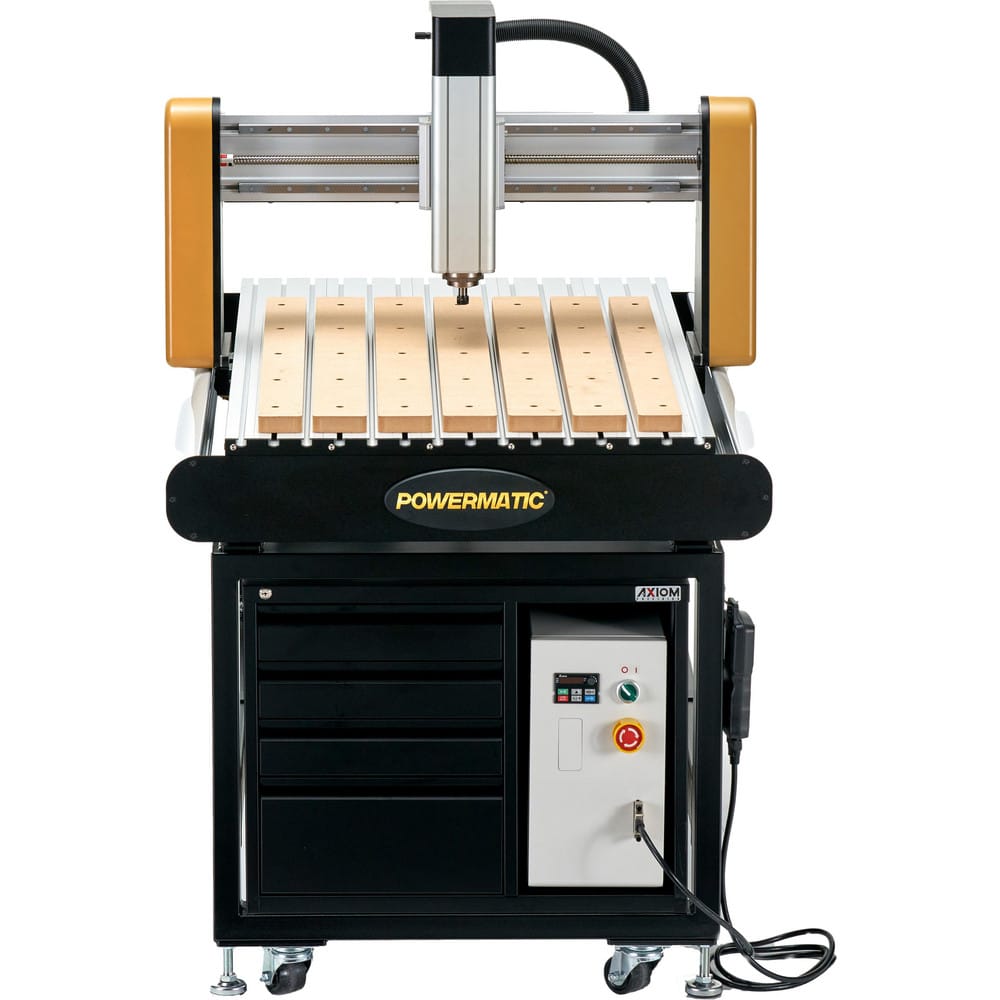

CNC Routers; X Axis Travel Length (Decimal Inch): 23.8100; Y Axis Travel Length (Decimal Inch): 24.0100; Z Axis Travel Length (Decimal Inch): 3.9370; Spindle Speed (RPM): 24000.00; Spindle Power (Watts): 800; Rapid Feed Rate (IPM): 150; Rapid Feed Rate (M
Item #: 98339641
Brand: Powermatic
Model #: 1797224
Product Specifications
| X Axis Travel Length (Decimal Inch) | 23.8100 |
| Y Axis Travel Length (Decimal Inch) | 24.0100 |
| Z Axis Travel Length (Decimal Inch) | 3.9370 |
| Spindle Speed (RPM) | 24000.00 |
| Spindle Power (Watts) | 800 |
| Rapid Feed Rate (IPM) | 150 |
| Rapid Feed Rate (MPM) | 3.81 |
| Resolution | +/- .00589 Inches (0.15mm) |
| Voltage | 115 |
| Collet Sizes | 1/4 & 1/8 Inches |
| Controller | RichAuto B11 DSP |
| Gantry Clearance With Spoilboard (Inch) | 4.5 |
| Ball Screw Size (mm) | 16mm |
| Gantry Clearance Without Spoilboard (Inch) | 5.5 |
| Gantry Bridge Material | Aluminum |
| Amperage | 13 |
| Gantry Support Material | Aluminum |
| Base Material | Steel |
| Table Material | Aluminum |
| Overall Height (Decimal Inch - 4 Decimals) | 28.0000 |
| Overall Width (Decimal Inch - 4 Decimals) | 38.0000 |
| Overall Length (Decimal Inch) | 38.0000 |
| Includes | 1/4 & 1/8 Inches Collets |
