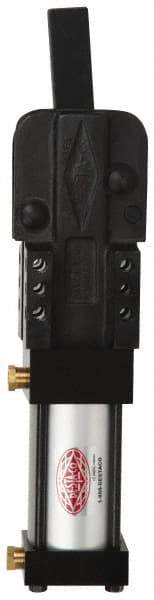

De-Sta-Co - 5,000 Lb Inner Hold Capacity, Vert Mount, Air Power Hold-Down Toggle Clamp - 3/8 NPT Port, 307.85mm Height Under Bar
Item #: 98183924
Brand: De-Sta-Co
Model #: 891
Exact Tooling IR#: 04
Features and Benefits
Vertical mounts are designed with the toggle at 90 degrees. The cylinder is mounted in either a vertical position or a position that is perpendicular to the clamping bar.
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Mounting Orientation | Vertical |
| Holding Capacity - Inner (Lb.) | 5000 |
| Height Under Bar (mm) | 307.85 |
| Height Under Bar (Decimal Inch) | 12.12 |
| Port Size | 3/8 NPT |
| Length Distance Between Mount Holes (Decimal Inch) | 1.3800 |
| Width Distance Between Mount Holes (Decimal Inch) | 2.7600 |
| Clamping Force - Inner (Lb.) | 2700 |
| Overall Closed Length (Inch) | 13-1/2 |
| Overall Closed Length (Decimal Inch) | 13.50 |
| Overall Closed Height (Inch) | 8-1/16 |
| Overall Closed Height (Decimal Inch) | 13.50 |
| Air Requirement (psi) | 125 |
| Mounting Hole Size (Decimal Inch) | 0.4100 |
| Maximum Mechanical Advantage | 6.5:1 |
| Cylinder Bore Size (Decimal Inch) | 2.5000 |
