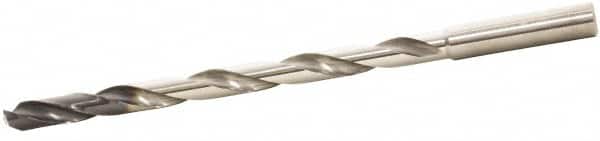

Sumitomo - 11/64" 2-Flute Solid Carbide Extra Length Drill Bit
Item #: 53958880
Brand: Sumitomo
Model #: U101277
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.
Titanium Aluminum chromium (TiAlCr) and titanium silicon (TiSi) is a super multi-layered coating. The TiAlCr/TiSi coating is used for general purpose applications without coolant thru.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 11/64 |
| Drill Bit Size (Decimal Inch) | 0.1719 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlCr/TiSi |
| Overall Length (Decimal Inch) | 4.6070 |
| Through Coolant | Coolant Through |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Flute Length (Decimal Inch) | 2.5200 |
| Flute Length x Diameter Ratio | 12xD |
| Number of Flutes | 2 |
| Shank Type | Straight |
| Shank Length (Decimal Inch) | 1.9690 |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.00080 to -0.00145 |
| Series/List | MDW-XHV |
