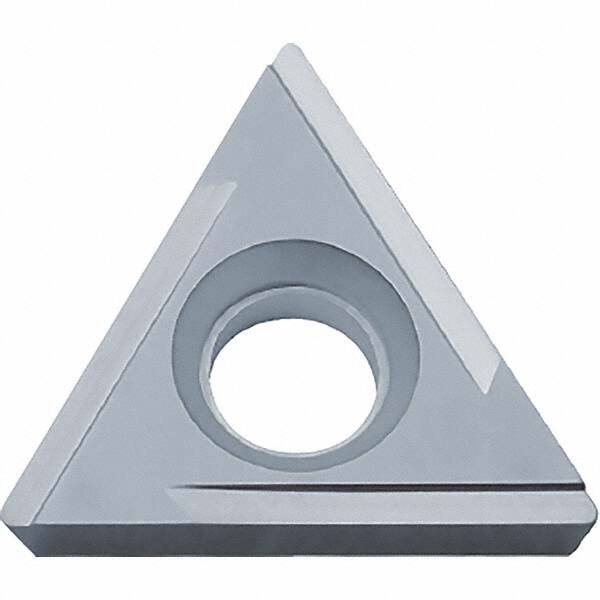

Kyocera - TPGT3305 H Grade TN620 Cermet Turning Insert
Item #: 11388568
Brand: Kyocera
Model #: 8862783
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGT |
| Insert Size | 3305 |
| Material | Cermet |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | TN620 |
| Coating | TiCN |
| Chip Breaker | H |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | TPGT160402L-H |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | TPGT3305LH TN620 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Insert Hand | Left Hand |
| Series | TPGT |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Boring, Internal Facing, Copying, Back Boring |
| MultiUseTool | Yes |
| Shape | Triangle |
