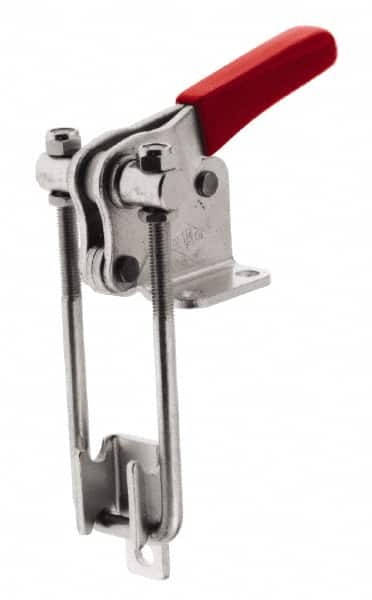

De-Sta-Co - 2,000 Lb Capacity, Vertical, U Hook, Flanged Base, Stainless Steel Pull Action Latch Clamp - 2.46" Drawing Movement, 5.77" OAL, Threaded U Hook, Straight Handle
Item #: 97980643
Brand: De-Sta-Co
Model #: 344-SS
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a latching hook that is 90 degrees to the mounting base. They are manufactured with holding capacities of up to 4,000 pounds.
Stainless steel is used for a variety of applications. It has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures.
| Product Specifications | |
|---|---|
| Clamping Orientation | Vertical |
| Bar Style | U-Hook |
| Load Capacity (N) | 8896.44 |
| Load Capacity (Lb.) | 2000 |
| Base Style | Flanged |
| Material | Stainless Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 5.7700 |
| Overall Length (mm) | 146.56 |
| Overall Height (mm) | 278.13 |
| Overall Height (Decimal Inch) | 10.9500 |
| Drawing Movement (mm) | 62.48 |
| Drawing Movement (Decimal Inch) | 2.460 |
| Handle Color | Red |
| Base Length (mm) | 49.28 |
| Base Length (Decimal Inch) | 1.9400 |
| Base Width (mm) | 53.85 |
| Base Width (Decimal Inch) | 2.1200 |
| Mounting Hole Diameter (mm) | 8.64 |
| Mounting Hole Diameter (Decimal Inch) | 0.3400 |
| Width Distance Between Mount Holes (mm) | 36.58 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.4400 |
| Length Distance Between Mount Holes (mm) | 31.75 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Bar Width (mm) | 44.45 |
| Bar Width (Decimal Inch) | 1.7500 |
| Bar Thickness (Decimal Inch) | 0.3100 |
| Base to Center of Bar (Decimal Inch) | 0.5000 |
| Base to Center of Bar (mm) | 12.70 |
| Includes | Latch Plate; Patented Thumb Control Lever; Threaded U-Hook |
