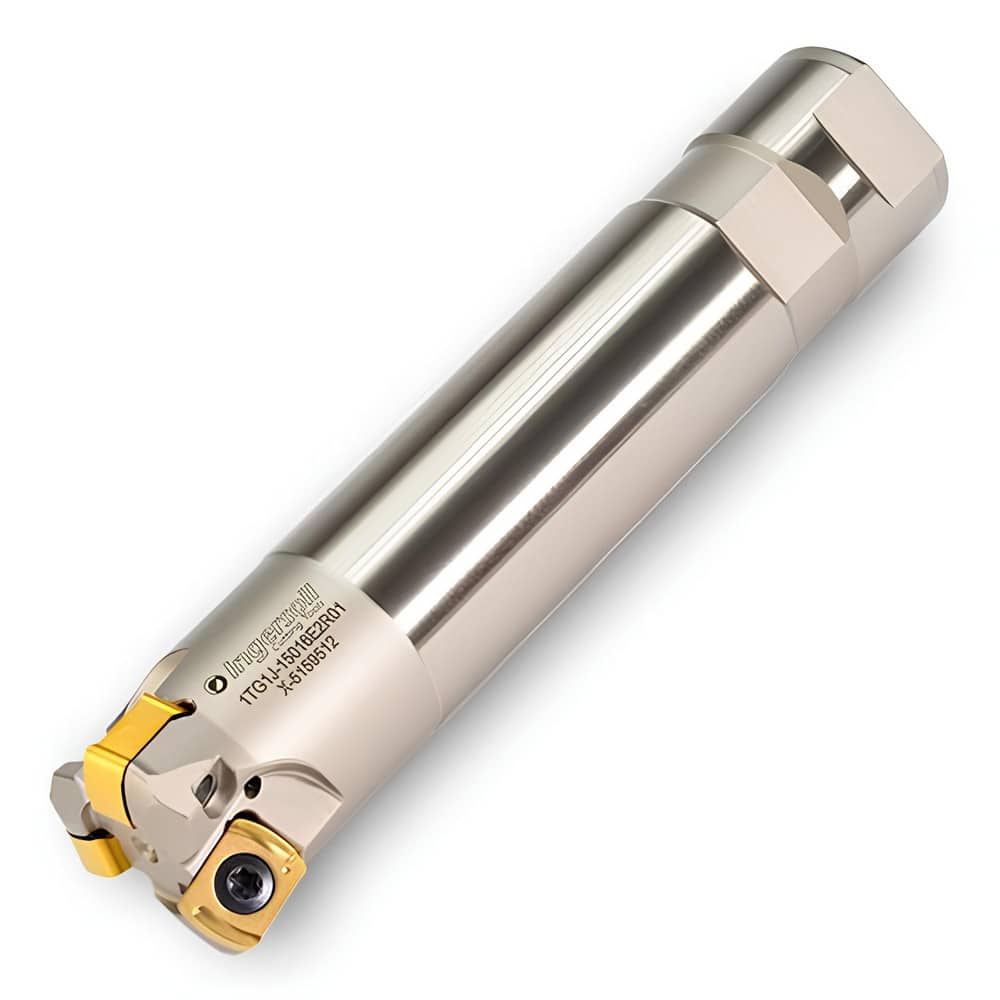

Indexable High-Feed End Mill: 1-1/4″ Cut Dia, 1-1/4″ Weldon Flat Shank Uses 2 UNLU Inserts, 0.078″ Max Depth, 5-1/2″ OAL, Through Coolant
Item #: 97901359
Brand: Ingersoll Cutting Tools
Model #: 2926268
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.6500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0780 |
| Toolholder Style | 1TG1J |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (mm) | 1.25 |
| Maximum Ramping Angle | 0.48 |
| Compatible Insert Style | UNLU |
| Compatible Insert Size Code | 1105 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 5.5000 |
| Overall Length (Inch) | 5-1/2 |
| Overall Length (mm) | 5.50 |
| Series | 1TG1J |
| Flute Type | Straight |
| Head Length (Decimal Inch) | 2.2000 |
| Functional Length (Decimal Inch) | 2.2000 |
| Projection (Decimal Inch - 4 Decimals) | 2.5000 |
| Projection (Inch) | 2-1/2 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
