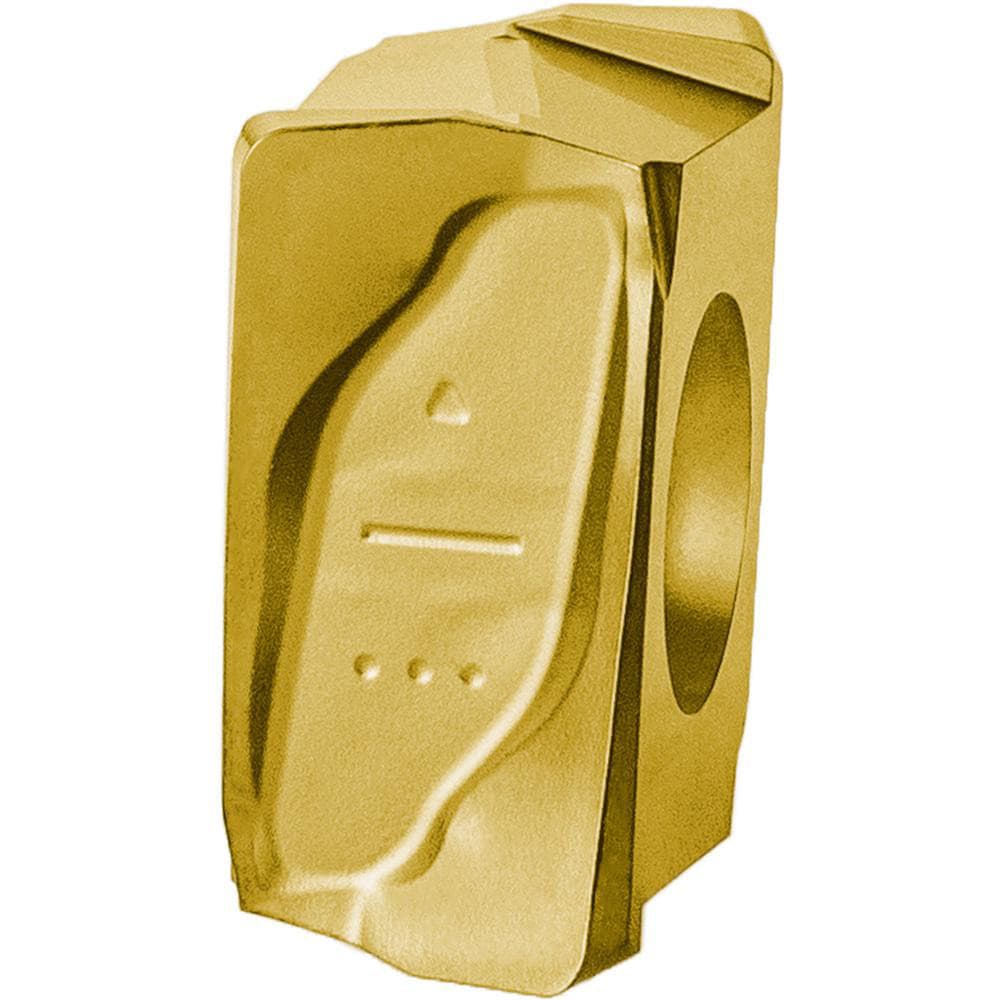

Milling Insert: LOGU120624ER-GM CA6535, Carbide
Item #: 87708947
Brand: Kyocera
Model #: TMA40020
Product Specifications
| Insert Style | LOGU |
| Insert Size | 1206 |
| Insert Material | Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | CA6535 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Corner Radius (mm) | 2.40 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3854 |
| Thickness (mm) | 9.7900 |
| Coating/Finish | TiCN/Al2O3/TiN |
| Insert Hand | Right Hand |
| Series | MA90 Tangential Milling |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.5500 |
| Hole Diameter (Decimal Inch) | 0.1791 |
| Rake | Positive |
| Primary Workpiece Material | Martensitic Stainless Steel; High Temperature Alloy |
| Primary Workpiece Material Code | S; M |
| Ansi Code | LOGU120624ERGMCA6535 |
| Iso Code | LOGU120624ER-GM |
| Manufacturers Catalog Number | LOGU120624ERGMCA6535 |
| Chip Breaker | ER-GM |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 13.28 |
| Width (Decimal Inch - 4 Decimals) | 0.2598 |
| Width (mm - 2 Decimals) | 6.60 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5228 |
| Country of Origin | Japan |
