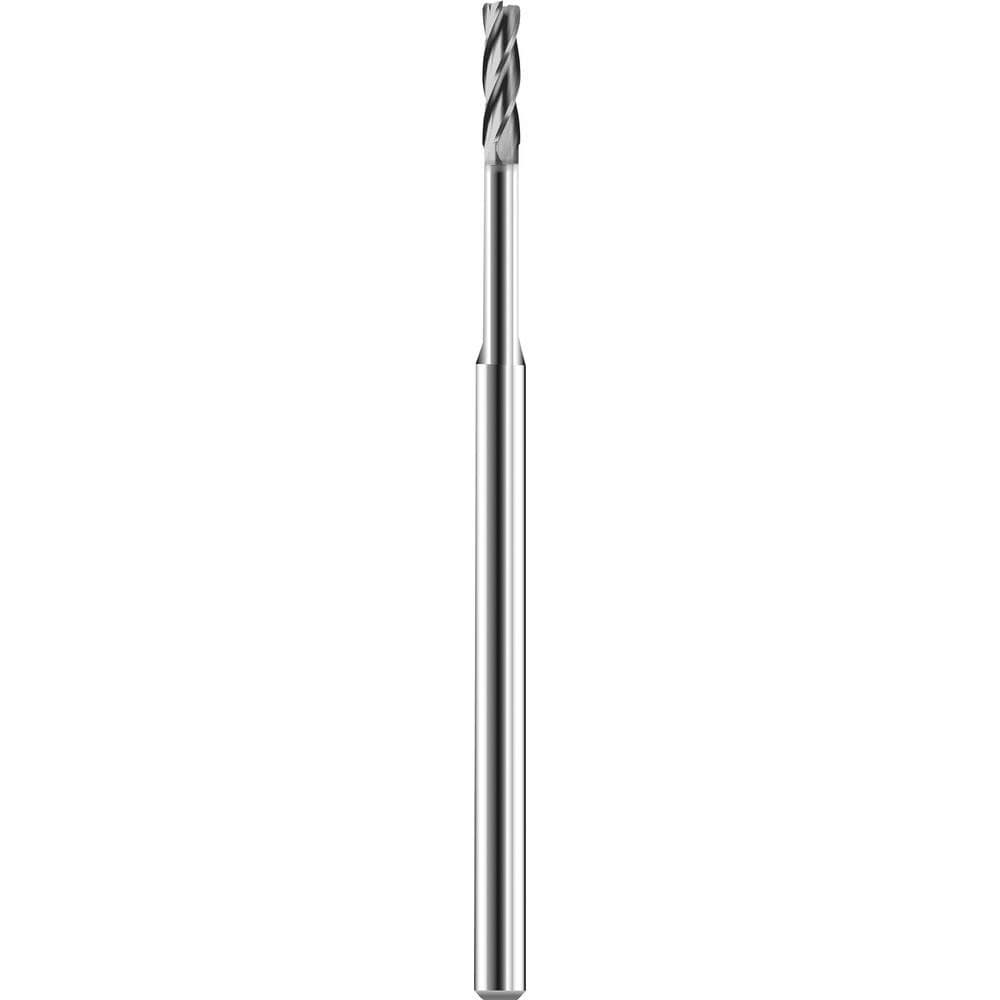

Square End Mill: 0.0312" Dia, 0.0930" LOC, 4 Flute, Solid Carbide
Item #: 65536427
Brand: SGS
Model #: 09848
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0312 |
| Mill Diameter (Inch) | 1/32 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.0930 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Neck Diameter (Decimal Inch) | 0.4520 |
| Neck Diameter (mm) | 11.48 |
| Reach Length (Decimal Inch) | 0.3720 |
| Reach Length (mm) | 9.45 |
| Series | M4S |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.0312 |
| Mill Diameter (Inch) | 1/32 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.0930 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Neck Diameter (Decimal Inch) | 0.4520 |
| Neck Diameter (mm) | 11.48 |
| Reach Length (Decimal Inch) | 0.3720 |
| Reach Length (mm) | 9.45 |
| Series | M4S |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 65536427 |
| Mfr Part # | 09848 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
