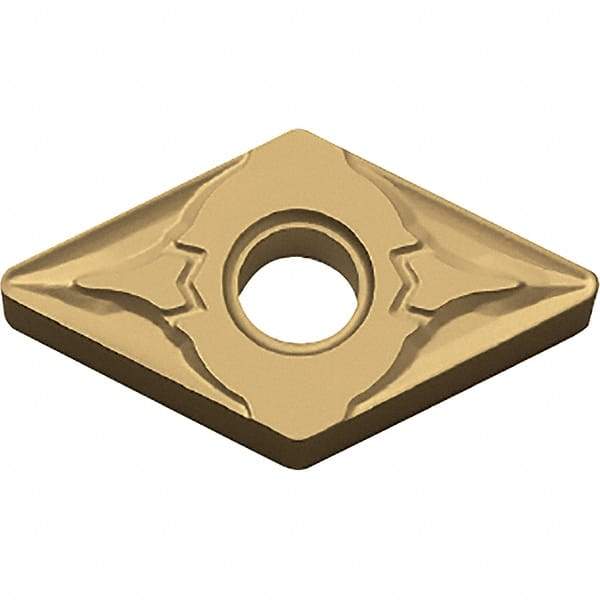

Kyocera - DNMG432 GT Grade CA5515 Carbide Turning Insert - 55° Included Angle, TiCN/Al2O3/TiN Finish, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 97136907
Brand: Kyocera
Model #: 8818642
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | CA5515 |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | Micro Columnar |
| Chip Breaker | GT |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | DNMG150408GT |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Insert Hand | Neutral |
