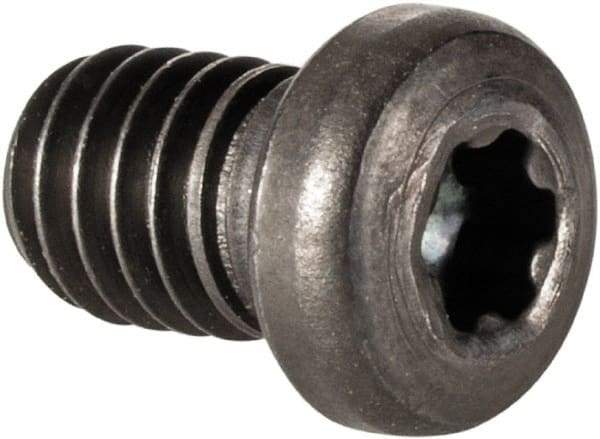

Komet - Torx Plus Clamping Screw for Indexable Boring Bars & Drilling - M3.5 Thread, For Use with Cartridges, Drill Head & Inserts
Item #: 97048722
Brand: Komet
Model #: N0055701
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Screw Type | Clamping Screw |
| Indexable Tool Type | Boring Bar; Drilling |
| Hardware Compatibility | Cartridge; Drill Head; Insert |
| Drive Type | Torx Plus |
| Thread Size (mm) | M3.5 |
| Complete Insert Compatibility1 | TOHX 090204 EN-04; TOHX 090204..L-G06; TOHX 090204..L-G12; TOHX 090204..L-G20; TOHX 140304 EN-04; WOEX 040304-01; WOEX060304-00; WOEX06T304-01; WOEX06T304-11; WOHX060302EL-G06; WOHX060302EL-G12 |
| Toolholder Style Compatibility1 | SI-SWUC |
| Cartridge Size Compatibility | WVU T09 |
| Key/Driver Compatibility | L05 00830; L05 01240 |
| Head Type | Cylindrical |
| Torx Size | TP8 |
| Series | KUB; KUB Centron; Kometric |
| Screw Length (Decimal Inch) | 0.1969 |
| Screw Length (mm) | 5.00 |
