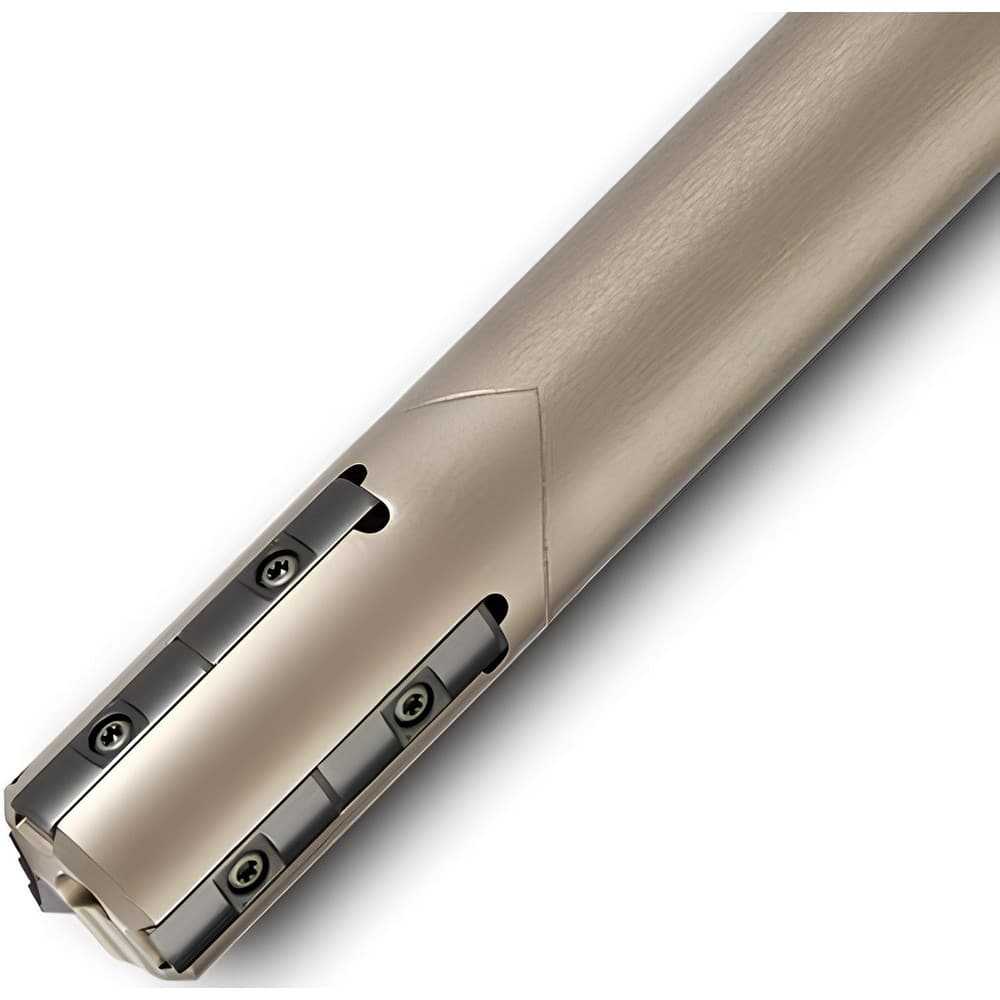

Indexable Insert Drills; Drill Style: GTADP; Maximum Drill Diameter (Inch): 23/32; Drill Diameter (Decimal Inch): 0.7180; Maximum Drill Diameter (Decimal Inch): 0.7180; Drill Diameter (Inch): 23/32; Maximum Drill Depth (Decimal Inch): 86.3000; Maximum Dri
Item #: 97025506
Brand: Ingersoll Cutting Tools
Model #: 4846967
Product Specifications
| Drill Style | GTADP |
| Maximum Drill Diameter (Inch) | 23/32 |
| Drill Diameter (Decimal Inch) | 0.7180 |
| Maximum Drill Diameter (Decimal Inch) | 0.7180 |
| Drill Diameter (Inch) | 23/32 |
| Maximum Drill Depth (Decimal Inch) | 86.3000 |
| Maximum Drill Depth (mm) | 2192.02 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 090305 |
| Drill Depth by Diameter Ratio | 25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 90.1200 |
| Overall Length (mm) | 2289.0500 |
| Series | GTADP |
| Flute Length (Decimal Inch) | 86.3000 |
| Flute Length (mm) | 2192.02 |
| Body Length | 2286.000 |
| Body Length (Decimal Inch) | 90.0000 |
| Shank Length (Decimal Inch) | 2.7600 |
| Shank Length (mm) | 70.100 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Overall Length/Projection (Decimal Inch) | 90.1200 |
| Overall Length/Projection (mm) | 2289.05 |
| Insert Compatibility | DT; TPHT090305R-ML; TPHT090305R-DT; TPHT090305R-DT-P |
| Torx Wrench | T7; T8 |
| Insert Lock Screw | SR14-560/S |
| Extension From Holder (Inch) | 90.0000 |
| Coolant Through | Coolant Through |
 | |
| MSC Part # | 97025506 |
| Mfr Part # | 4846967 |
| Country of OriginCountry of Origin is subject to change | South Korea |
