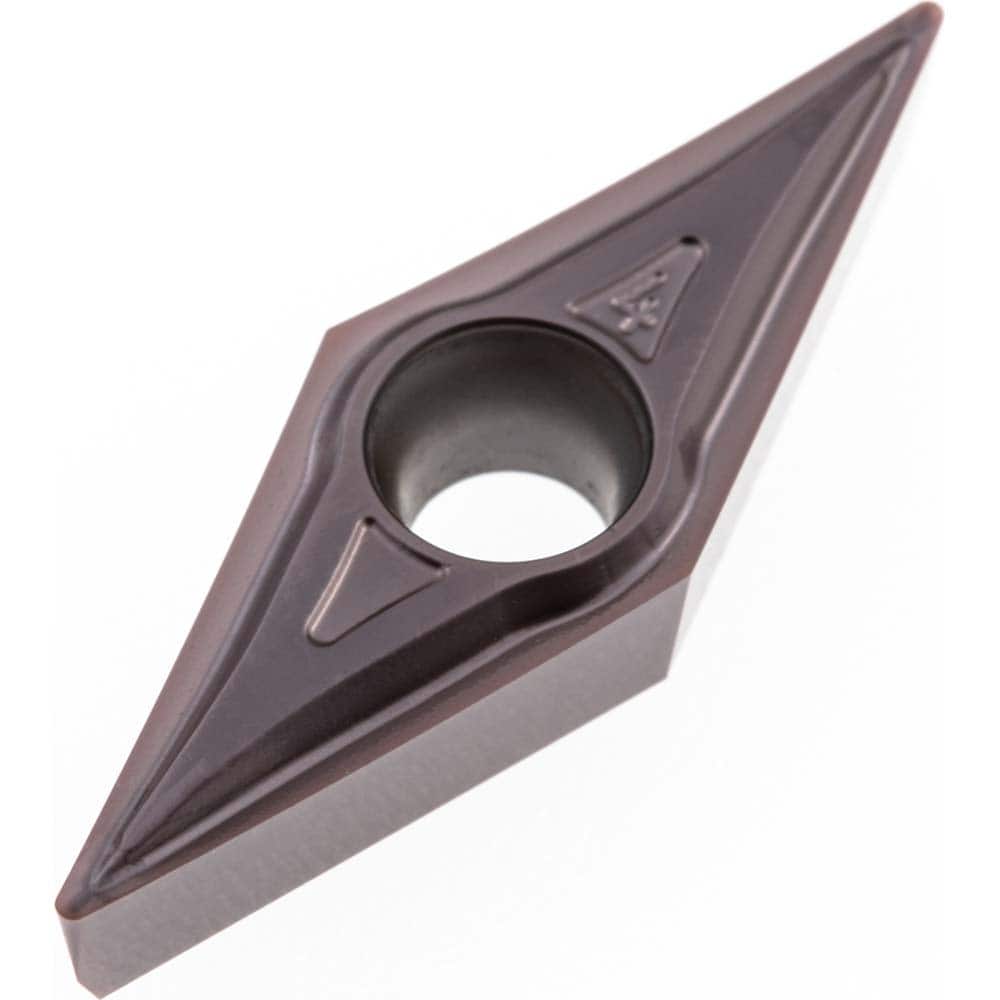

VCGT220.5FN-ASF AT10 Carbide Turning Insert Neutral, 11.1mm Long, 6.35mm Inscribed Circle, 0.2mm Corner Radius, 3.18mm Thick, 35° Diamond
Item #: 96917315
Brand: Arno
Model #: 28269
Product Specifications
| Insert Style | VCGT |
| Insert Shape Code | V |
| Insert Size Code | 220.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AT10 |
| Hole Diameter (Decimal Inch) | 2.9000 |
| Maximum Depth of Cut (mm) | 2.00 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 3.18 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (mm) | 11.10 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | P; S; K; M |
| Iso Code | VCGT 110302FN-ASF AT10 |
| Manufacturers Catalog Number | VCGT 110302FN-ASF |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | ASF |
| Cutting Edge Style | Sharp |
| Style | VCGT |
| Industry Standard Number | VCGT 110302FN-ASF AT10 |
| Width (Mm - 2 Decimals) | 6.35 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Machining; Turning |
 | |
| MSC Part # | 96917315 |
| Mfr Part # | 28269 |
| Country of OriginCountry of Origin is subject to change | Germany |
