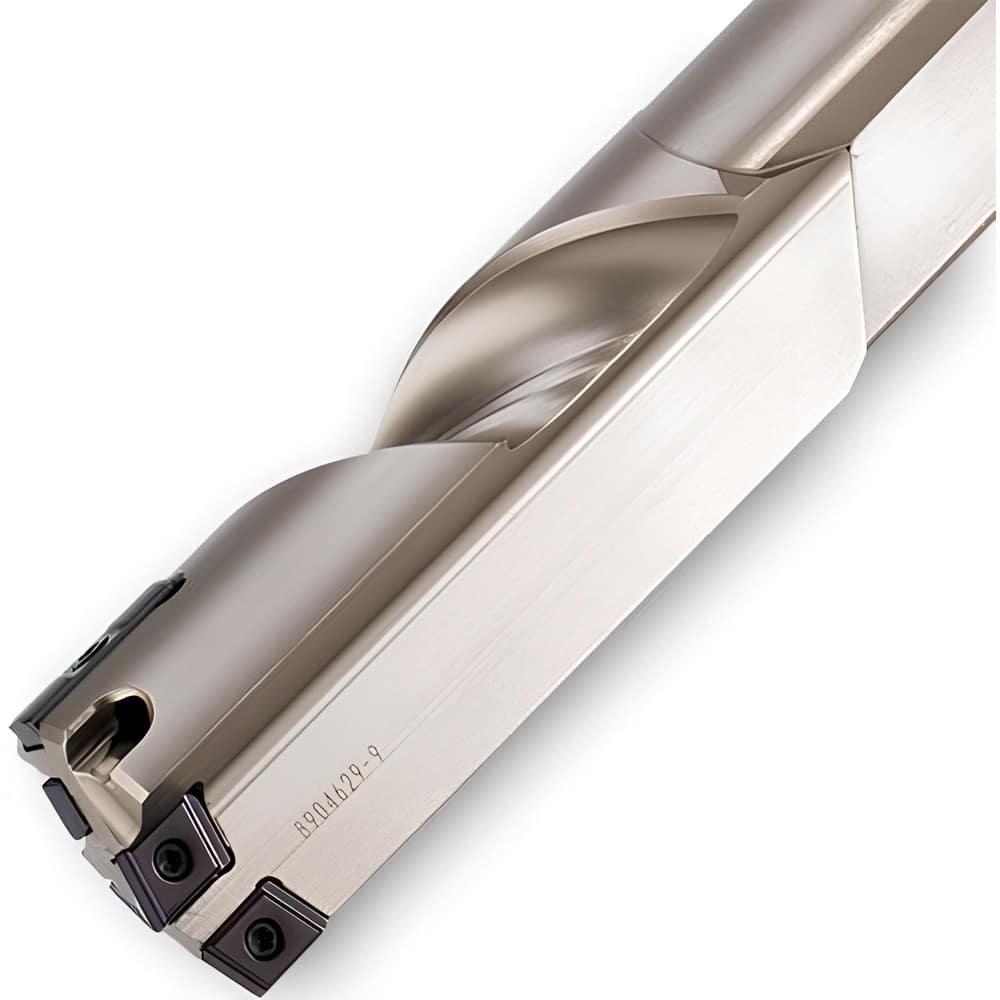

Indexable Insert Drills; Drill Style: GF; Maximum Drill Diameter (Inch): 1-1/4; Drill Diameter (Decimal Inch): 1.2500; Maximum Drill Diameter (Decimal Inch): 1.2500; Drill Diameter (Inch): 1-1/4; Maximum Drill Depth (Decimal Inch): 12.7200; Maximum Drill
Item #: 96840145
Brand: Ingersoll Cutting Tools
Model #: 4853399
Product Specifications
| Drill Style | GF |
| Maximum Drill Diameter (Inch) | 1-1/4 |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Diameter (Decimal Inch) | 1.2500 |
| Drill Diameter (Inch) | 1-1/4 |
| Maximum Drill Depth (Decimal Inch) | 12.7200 |
| Maximum Drill Depth (mm) | 323.09 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 3 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | NPHT; NPMT |
| Compatible Insert Size Code | 080404; 070408; 070404 |
| Drill Depth by Diameter Ratio | 10xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 18.3900 |
| Overall Length (Inch) | 18-25/64 |
| Series | GF |
| Flute Length (Decimal Inch) | 12.7200 |
| Flute Length (mm) | 323.09 |
| Body Length | 394.970 |
| Body Length (Decimal Inch) | 15.5500 |
| Shank Length (Decimal Inch) | 2.3600 |
| Shank Length (mm) | 59.940 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Overall Length/Projection (Inch) | 18-25/64 |
| Overall Length/Projection (Decimal Inch) | 18.3900 |
| Insert Compatibility | NPMT070408L-G; NPHT080404R-G; NPMT070404R-G |
| Collar Diameter (Decimal Inch) | 1.7700 |
| Collar Diameter (mm) | 44.96 |
| Torx Wrench | T7 |
| Insert Lock Screw | CSTB2.5 |
| Extension From Holder (Inch) | 15.5500 |
| Coolant Through | Coolant Through |
 | |
| MSC Part # | 96840145 |
| Mfr Part # | 4853399 |
| Country of OriginCountry of Origin is subject to change | South Korea |
