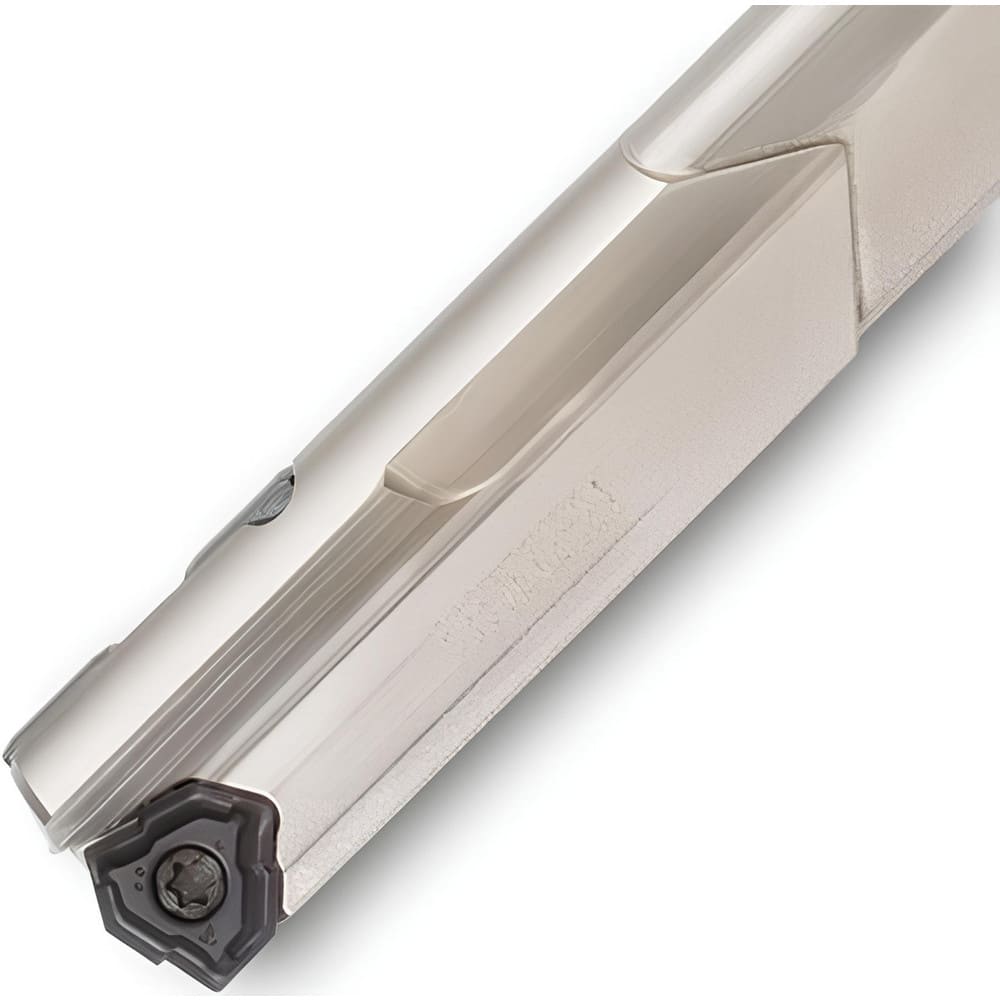

Indexable Insert Drills; Drill Style: GT; Maximum Drill Diameter (mm): 24.00; Drill Diameter (Decimal Inch): 0.9449; Maximum Drill Diameter (Decimal Inch): 0.9449; Drill Diameter (mm): 24.00; Maximum Drill Depth (Decimal Inch): 14.8976; Maximum Drill Dept
Item #: 96839360
Brand: Ingersoll Cutting Tools
Model #: 4820496
Product Specifications
| Drill Style | GT |
| Maximum Drill Diameter (mm) | 24.00 |
| Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Diameter (Decimal Inch) | 0.9449 |
| Drill Diameter (mm) | 24.00 |
| Maximum Drill Depth (Decimal Inch) | 14.8976 |
| Maximum Drill Depth (mm) | 378.40 |
| Shank Type | Flatted |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.0000 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 110405 |
| Drill Depth by Diameter Ratio | 15xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 19.2677 |
| Overall Length (mm) | 489.4000 |
| Series | GT |
| Flute Length (Decimal Inch) | 14.8976 |
| Flute Length (mm) | 378.40 |
| Body Length | 426.000 |
| Body Length (Decimal Inch) | 16.7717 |
| Shank Length (Decimal Inch) | 2.3622 |
| Shank Length (mm) | 60.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Overall Length/Projection (Decimal Inch) | 19.2677 |
| Overall Length/Projection (mm) | 489.40 |
| Insert Compatibility | TPHT110405R-DT; TPHT110405R-ML |
| Collar Diameter (Decimal Inch) | 1.5748 |
| Collar Diameter (mm) | 40.00 |
| Torx Wrench | T7; T15 |
| Insert Lock Screw | SR14-571/S |
| Extension From Holder (Inch) | 16.7717 |
| Coolant Through | Coolant Through |
 | |
| MSC Part # | 96839360 |
| Mfr Part # | 4820496 |
| Country of OriginCountry of Origin is subject to change | South Korea |
