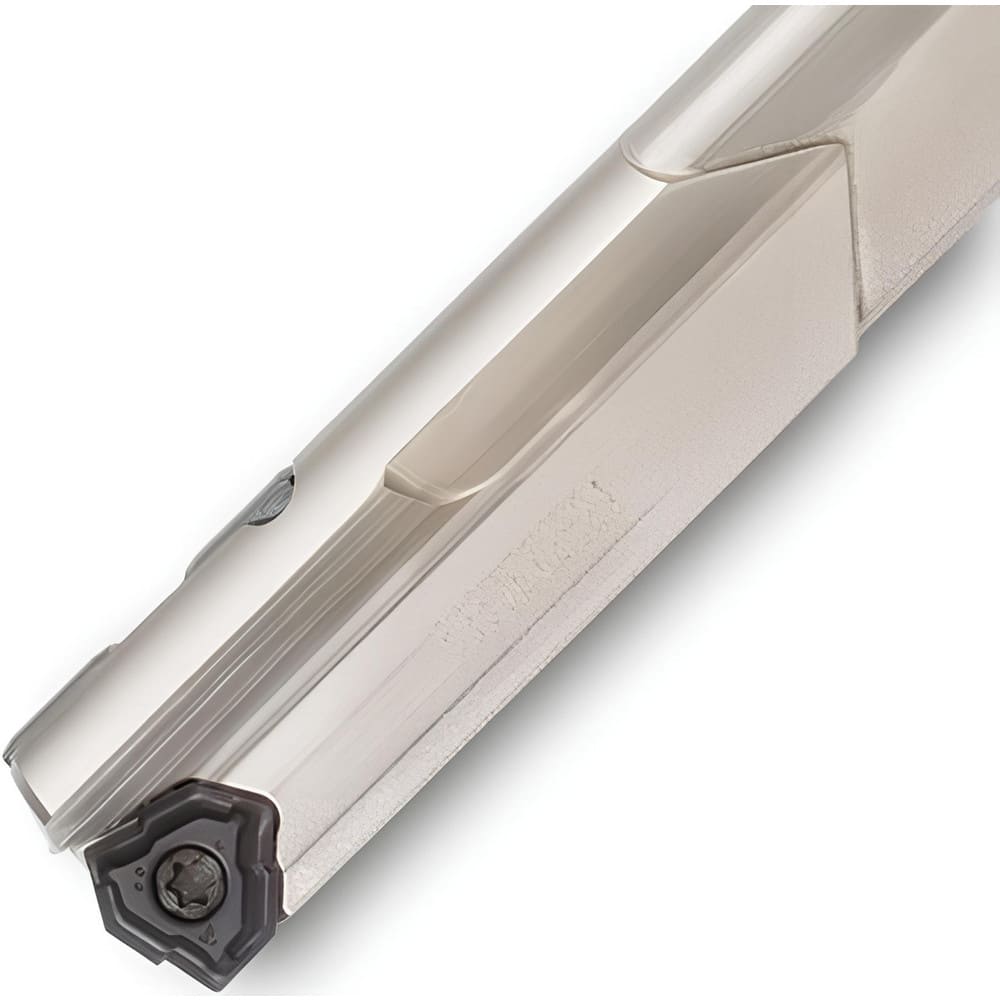

Indexable Insert Drills; Drill Style: GT; Maximum Drill Diameter (Inch): 1; Drill Diameter (Decimal Inch): 1.0000; Maximum Drill Diameter (Decimal Inch): 1.0000; Drill Diameter (Inch): 1; Maximum Drill Depth (Decimal Inch): 25.7400; Maximum Drill Depth (m
Item #: 96825310
Brand: Ingersoll Cutting Tools
Model #: 4819616
Product Specifications
| Drill Style | GT |
| Maximum Drill Diameter (Inch) | 1 |
| Drill Diameter (Decimal Inch) | 1.0000 |
| Maximum Drill Diameter (Decimal Inch) | 1.0000 |
| Drill Diameter (Inch) | 1 |
| Maximum Drill Depth (Decimal Inch) | 25.7400 |
| Maximum Drill Depth (mm) | 653.80 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 120405 |
| Drill Depth by Diameter Ratio | 25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 30.1400 |
| Overall Length (Inch) | 30-9/64 |
| Series | GT |
| Flute Length (Decimal Inch) | 25.7400 |
| Flute Length (mm) | 653.80 |
| Body Length | 702.060 |
| Body Length (Decimal Inch) | 27.6400 |
| Shank Length (Decimal Inch) | 2.3600 |
| Shank Length (mm) | 59.940 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Overall Length/Projection (Inch) | 30-9/64 |
| Overall Length/Projection (Decimal Inch) | 30.1400 |
| Insert Compatibility | TPHT120405R-DT |
| Collar Diameter (Decimal Inch) | 1.7700 |
| Collar Diameter (mm) | 44.96 |
| Torx Wrench | T7; T15 |
| Insert Lock Screw | SR14-506 |
| Extension From Holder (Inch) | 27.6400 |
| Coolant Through | Coolant Through |
 | |
| MSC Part # | 96825310 |
| Mfr Part # | 4819616 |
| Country of OriginCountry of Origin is subject to change | South Korea |
