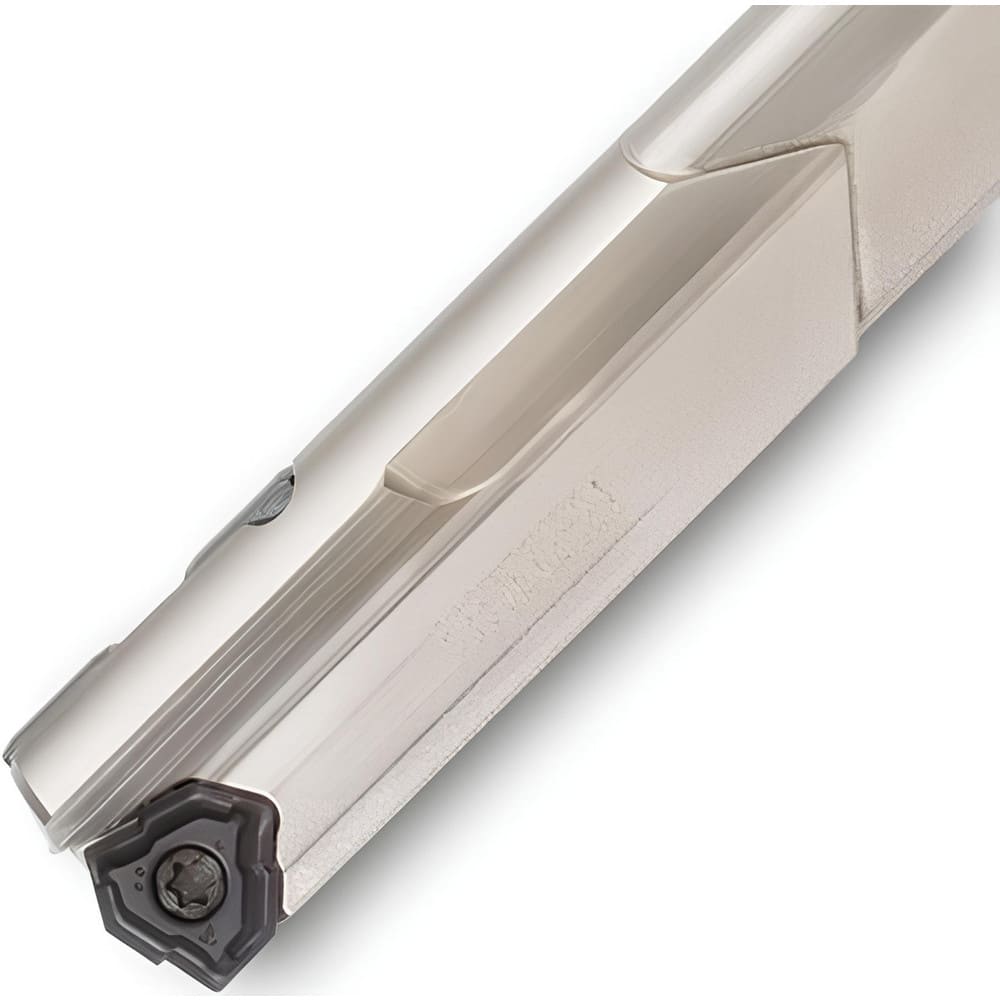

Indexable Insert Drills; Drill Style: GT; Maximum Drill Diameter (mm): 18.00; Drill Diameter (Decimal Inch): 0.7087; Maximum Drill Diameter (Decimal Inch): 0.7087; Drill Diameter (mm): 18.00; Maximum Drill Depth (Decimal Inch): 18.7874; Maximum Drill Dept
Item #: 96823406
Brand: Ingersoll Cutting Tools
Model #: 4821199
Product Specifications
| Drill Style | GT |
| Maximum Drill Diameter (mm) | 18.00 |
| Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Diameter (Decimal Inch) | 0.7087 |
| Drill Diameter (mm) | 18.00 |
| Maximum Drill Depth (Decimal Inch) | 18.7874 |
| Maximum Drill Depth (mm) | 477.20 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 080305 |
| Drill Depth by Diameter Ratio | 25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 22.6457 |
| Overall Length (mm) | 575.2000 |
| Series | GT |
| Flute Length (Decimal Inch) | 18.7874 |
| Flute Length (mm) | 477.20 |
| Body Length | 517.000 |
| Body Length (Decimal Inch) | 20.3543 |
| Shank Length (Decimal Inch) | 2.2047 |
| Shank Length (mm) | 56.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Overall Length/Projection (Decimal Inch) | 22.6457 |
| Overall Length/Projection (mm) | 575.20 |
| Insert Compatibility | TPHT080305R-DT |
| Collar Diameter (Decimal Inch) | 1.2598 |
| Collar Diameter (mm) | 32.00 |
| Torx Wrench | T7; T8 |
| Insert Lock Screw | SR14-560/S |
| Extension From Holder (Inch) | 20.3543 |
| Coolant Through | Coolant Through |
 | |
| MSC Part # | 96823406 |
| Mfr Part # | 4821199 |
| Country of OriginCountry of Origin is subject to change | South Korea |
