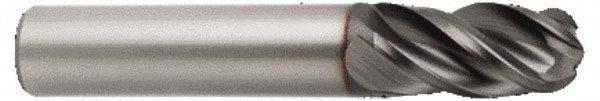

Brand: Widia / Part #: 2655020
Item #: 74326539
Brand: Widia
Model #: 2655020
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Chipbreaker | No |
| Number Of Flutes | 4 |
| End Type | Ball End |
| Extended Reach | No |
| Helix Angle | 38 |
| Undercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Length Type | Regular |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Nose Radius (Decimal Inch) | 0.2500 |
| Reach Length (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 3.0000 |
| Mill Diameter Tolerance | +0.000 to -0.002 in |
| Shank Diameter Tolerance | +0.00000 to -0.00043 in |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | TiAlN-LW |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 4V00 |
| Flute Type | Helical |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Weldon Flat |
| Model Number | 2655020 |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Manufacturers Catalog Number | TF4V0013005 |
