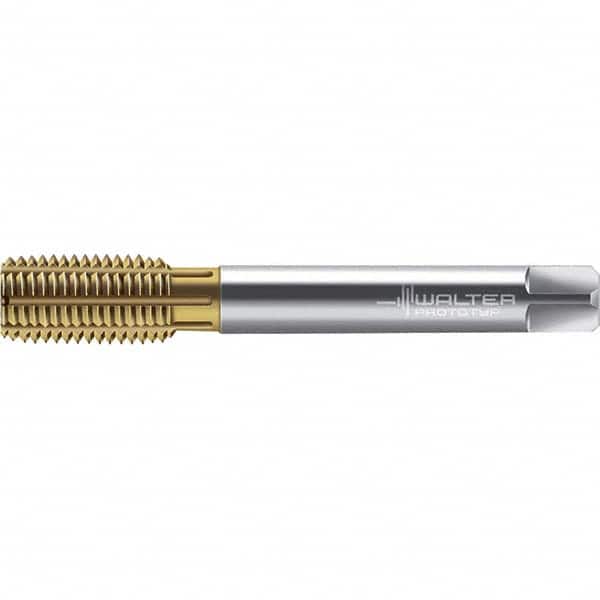

Thread Forming Tap: DIN 2174, 6HX Class of Fit, Semi-Bottoming, Powdered Metal High Speed Steel, TiN Finish 9.61, Series TC430
Item #: 96798038
Brand: Walter-Prototyp
Model #: 7427767
Product Specifications
| Thread Size (mm) | M10 x 1.00 |
| Overall Length (mm) | 90.00 |
| Chamfer | Semi-Bottoming |
| Coating/Finish | TiN |
| Thread Limit | 9.610 |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | DIN 2174 |
| Thread Direction | Right Hand |
| Material | Powdered Metal High Speed Steel |
| Thread Length (Mm) ( - 3 Decimals) | 12.00 |
| Shank Diameter (mm) | 7.00 |
| Neck Length (Decimal Inch) | 2.1660 |
| Neck Length | 55.00 |
| Square Length (mm) | 8.00 |
| Square Length (Decimal Inch) | 0.3150 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Application | Blind Hole Threading; Through-Hole Threading |
| Series | TC430 |
| Class Of Fit | 6HX |
| Coolant Through | Yes |
