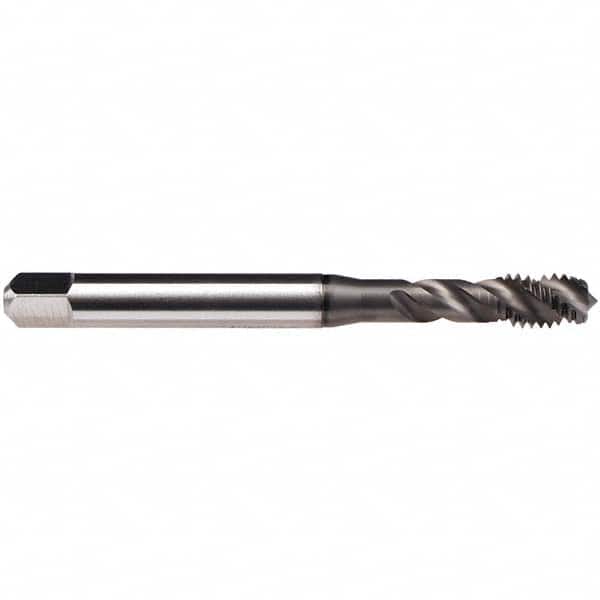

Spiral Flute Tap: 3/8-16, UNC, 3 Flute, 1.5-2 P, 3B Class of Fit, GLT-1 Finish 0.63″ Thread Length, Right Hand Flute, Right Hand Thread, H4, Series Enorm
Item #: 96463567
Brand: Emuge
Model #: BU51C410.5011
Product Specifications
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | 3/8-16 |
| Thread Standard | UNC |
| Thread Limit | H4 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.6300 |
| Overall Length (mm) | 100.00 |
| Chamfer | 1.5-2 P |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Neck Length (Decimal Inch) | 1.5354 |
| Tapping Depth (Decimal Inch) | 1.1250 |
| Square Size (Decimal Inch) | 0.2860 |
| Flute Style | Fast |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy |
| Series | Enorm |
| Coolant Through | No |
| Teeth per Inch | 16 |
| Number Of Flutes | 3 |
| Class Of Fit | 3B |
