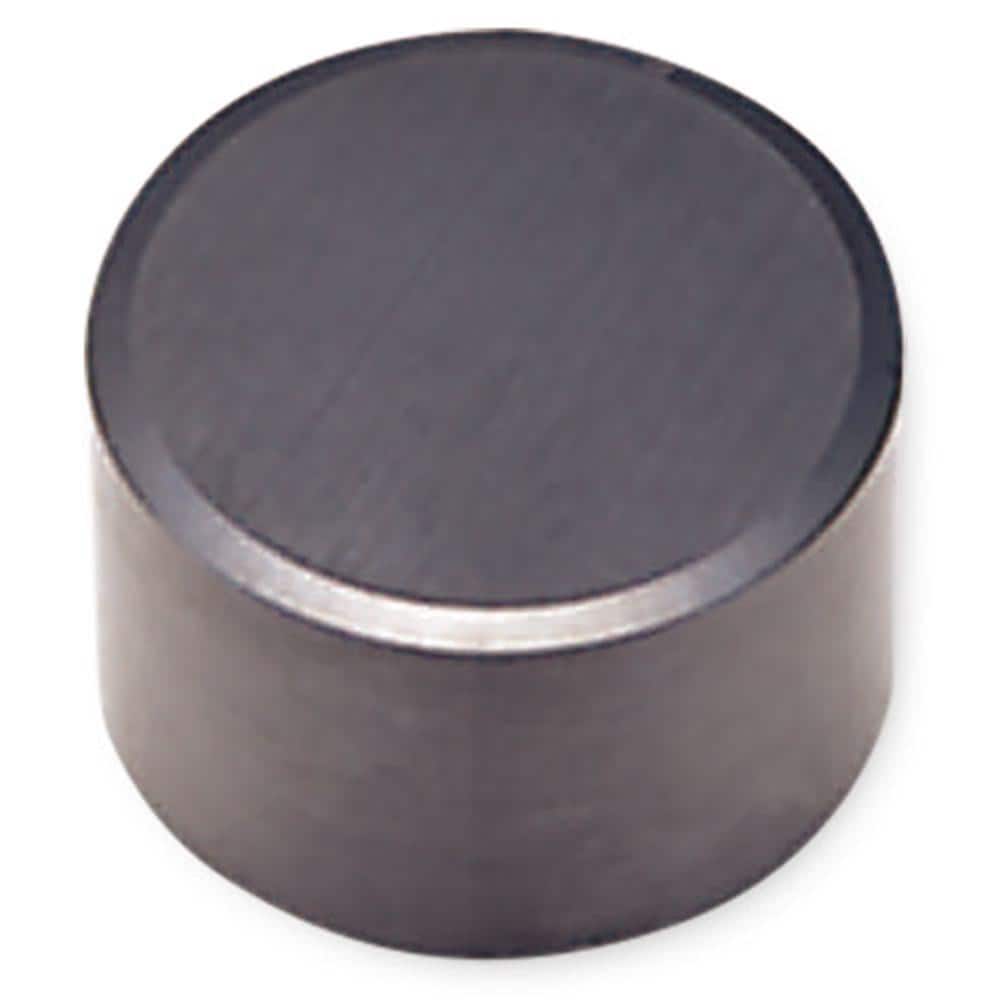

Turning Insert: RNG45T6 TC3020, Ceramic Uncoated Finish, Neutral, 0.5000″ Long, 1/2″ Inscribed Circle, 0.2500″ Corner Radius, N/A Round, Series RNG
Item #: 96324124
Brand: Ingersoll-Rand
Model #: 6158923
Product Specifications
| Insert Style | RNG |
| Insert Shape Code | R |
| Insert Size Code | 45T6 |
| Insert Shape | Round |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Ceramic |
| Manufacturer Grade | TC3020 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3130 |
| Corner Radius (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Relief Angle | 0 |
| Series | RNG |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Inch) | 1/2 |
| Insert Length (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | RNG45T6TC3020 |
| Iso Code | RNGN120700T6 TC3020 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Coating/Finish | Uncoated |
