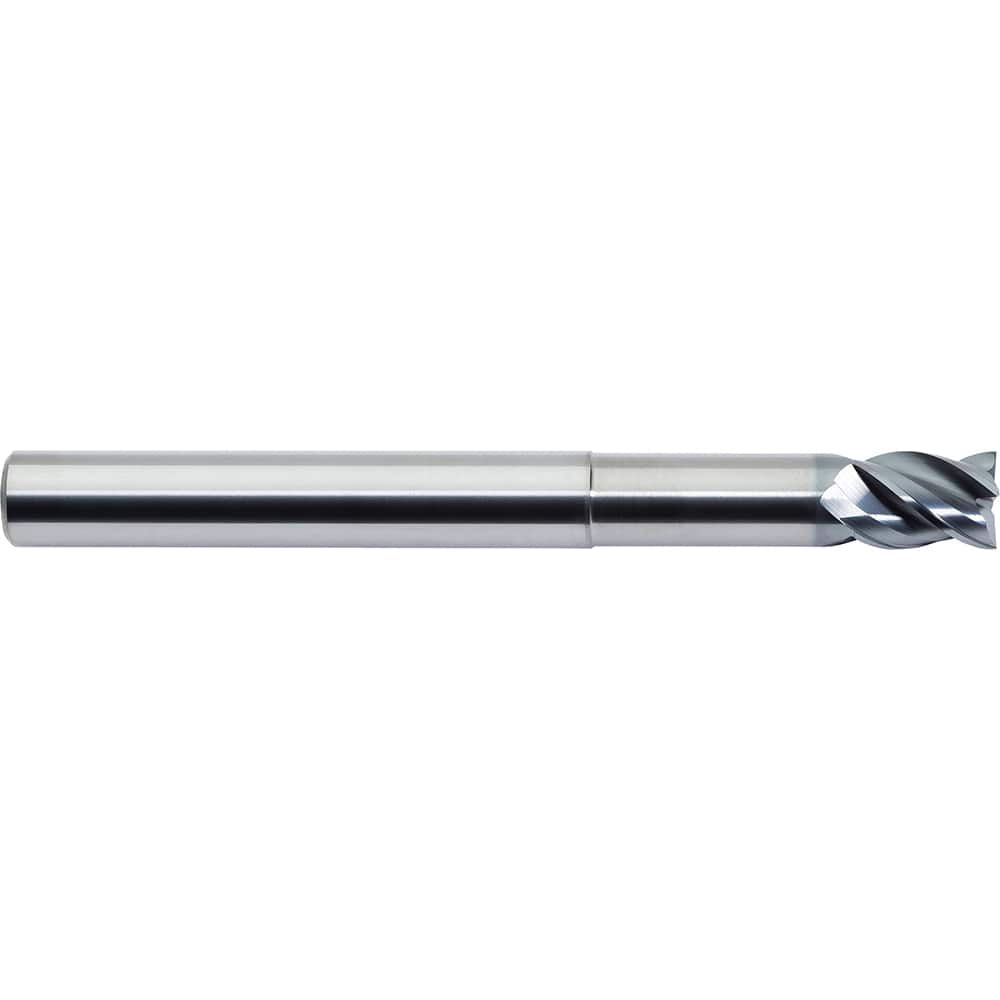

Square End Mill: 1/2'' Dia, 5/8'' LOC, 1/2'' Shank Dia, 4'' OAL, 4 Flutes, Solid Carbide Single End, Helical Flute, Variable Helix, Centercutting, RH Cut, RH Flute
Item #: 96261177
Brand: M.A. Ford?
Model #: 27750000N3B
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 5/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Finish/Coating | AlCrN |
| Overall Length (Inch) | 4 |
| Helix Angle | 38/41/Variable |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | Yes |
| Length Of Cut Range (Decimal Inch) | 0.6000 - 0.7000 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | High; Medium |
| Length Type | Standard |
