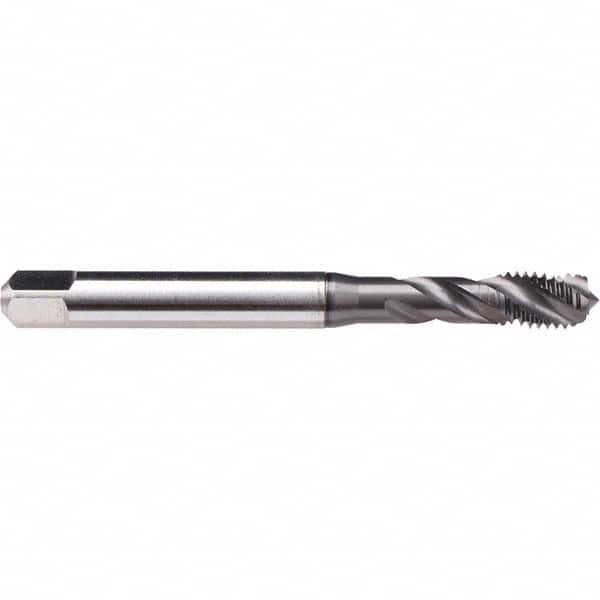

Spiral Flute Tap: #10-24, UNC, 3 Flute, Modified Bottoming, 2B Class of Fit, Cobalt, GLT-1 Finish 0.591″ Thread Length, 2.756″ OAL, Right Hand Flute, Right Hand Thread, H4, Series BU50C300
Item #: 96251160
Brand: Emuge
Model #: BU50C300.5007
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | #10-24 |
| Thread Standard | UNC |
| Thread Limit | H4 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.5910 |
| Overall Length (Decimal Inch) | 2.7560 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 35 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Neck Length (Decimal Inch) | 0.9840 |
| Tapping Depth (Decimal Inch) | 0.9840 |
| Square Size (Decimal Inch) | 0.1520 |
| Flute Style | Fast |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | BU50C300 |
| Coolant Through | No |
| Teeth per Inch | 24 |
| Number Of Flutes | 3 |
| Class Of Fit | 2B |
