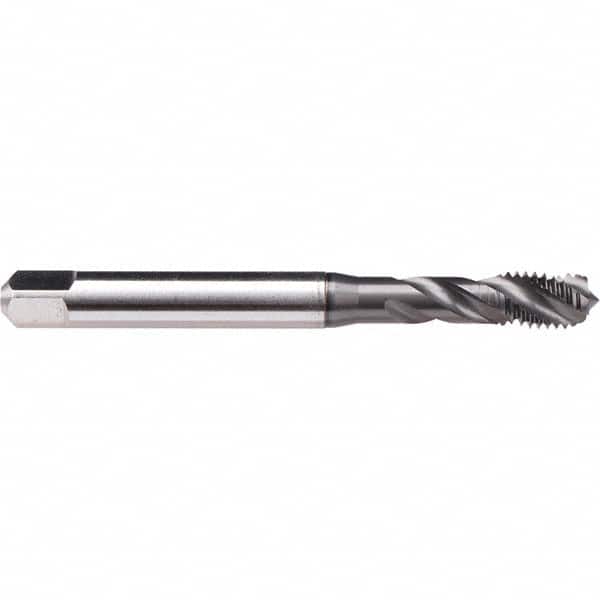

Spiral Flute Tap: #2-64, UNF, 2 Flute, Modified Bottoming, 2B Class of Fit, Cobalt, GLT-1 Finish 0.276″ Thread Length, 1.772″ OAL, Right Hand Flute, Right Hand Thread, H3, Series BU50C300
Item #: 96251145
Brand: Emuge
Model #: BU50C300.5035
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | #2-64 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.2760 |
| Overall Length (Decimal Inch) | 1.7720 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 35 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Neck Length (Decimal Inch) | 0.4720 |
| Tapping Depth (Decimal Inch) | 0.4720 |
| Square Size (Decimal Inch) | 0.1100 |
| Flute Style | Fast |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | BU50C300 |
| Coolant Through | No |
| Teeth per Inch | 64 |
| Number Of Flutes | 2 |
| Class Of Fit | 2B |
