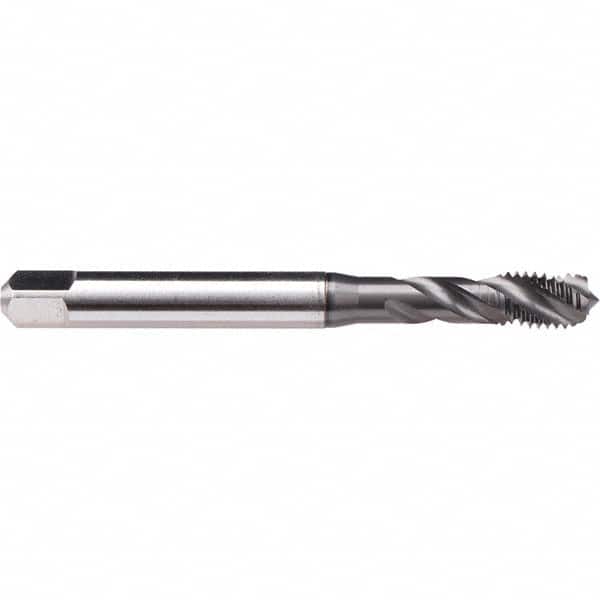

Spiral Flute Tap: #6-40, UNF, 3 Flute, Modified Bottoming, H7 Class of Fit, Cobalt, GLT-1 Finish 0.472″ Thread Length, 2.205″ OAL, Right Hand Flute, Right Hand Thread, H7, Series BU50C343
Item #: 96250451
Brand: Emuge
Model #: BU50C343.5039
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | #6-40 |
| Thread Standard | UNF |
| Thread Limit | H7 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.4720 |
| Overall Length (Decimal Inch) | 2.2050 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 35 |
| Amount Oversize (Decimal Inch) | 0.0035 |
| Application | Through-Hole Threading |
| Oversize | Yes |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Neck Length (Decimal Inch) | 0.7870 |
| Tapping Depth (Decimal Inch) | 0.7870 |
| Square Size (Decimal Inch) | 0.1100 |
| Flute Style | Fast |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | BU50C343 |
| Coolant Through | No |
| Teeth per Inch | 40 |
| Number Of Flutes | 3 |
| Class Of Fit | H7 |
