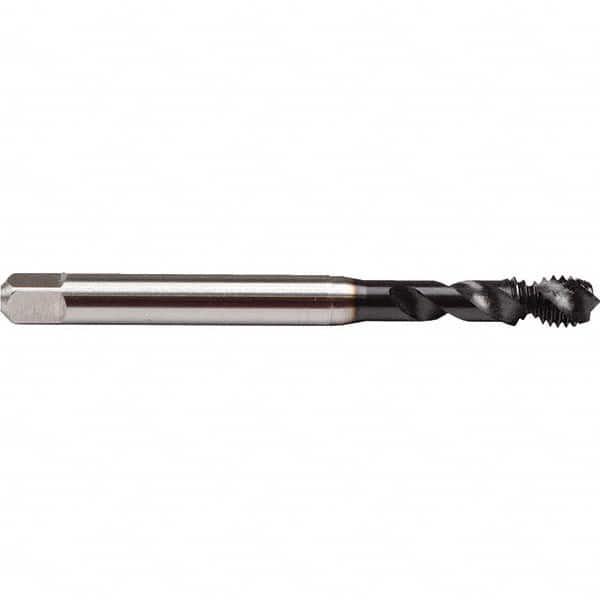

Spiral Flute Tap: #8-32, UNC, 2 Flute, Modified Bottoming, 3B Class of Fit, Cobalt, GLT-8 Finish 0.512″ Thread Length, 2.48″ OAL, Right Hand Flute, Right Hand Thread, H2, Series BU50S810
Item #: 96238597
Brand: Emuge
Model #: BU50S810.5006
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-8 |
| Thread Size (Inch - 0 Decimals) | #8-32 |
| Thread Standard | UNC |
| Thread Limit | H2 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.5120 |
| Overall Length (Decimal Inch) | 2.4800 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Neck Length (Decimal Inch) | 0.8270 |
| Tapping Depth (Decimal Inch) | 0.8270 |
| Square Size (Decimal Inch) | 0.1310 |
| Flute Style | Fast |
| Material Application | Non-Ferrous Metal |
| Series | BU50S810 |
| Coolant Through | No |
| Teeth per Inch | 32 |
| Number Of Flutes | 2 |
| Class Of Fit | 3B |
