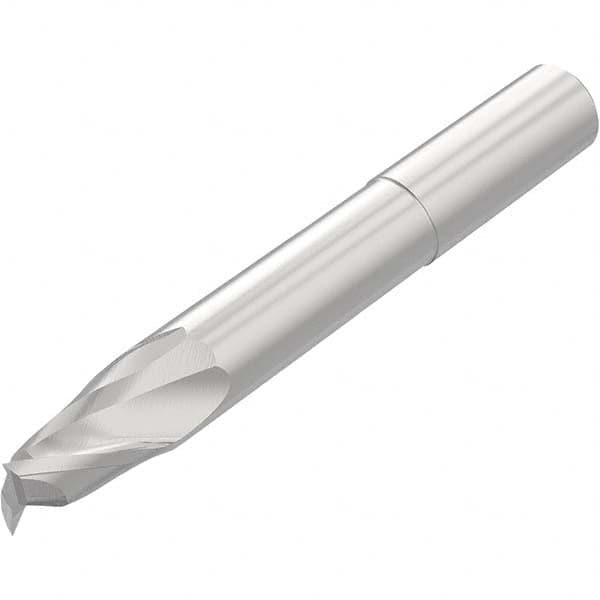

Square End Mill: 1/2'' Dia, 3/4'' LOC, 1/2'' Shank Dia, 4-1/2'' OAL, 2 Flutes, Solid Carbide Single End, Uncoated, Helical Flute, Centercutting, RH Cut, RH Flute, Series AN230
Item #: 96218086
Brand: Niagara Cutter
Model #: 03302594
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 4-1/2 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.7500 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 4.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Length Type | Extra Long |
| Mill Diameter Tolerance | +0.0020 in |
| Neck Length (Decimal Inch) | 2.0000 |
| Neck Diameter (Decimal Inch) | 0.4700 |
| Overall Length Tolerance | +0.060/-0.060 in |
| Reach Length (Inch) | 2-3/4 |
| Through Coolant | No |
| TIR Maximum (Decimal Inch) | 0.0005 |
| Series | AN230 |
 | |
| MSC Part # | 96218086 |
| Mfr Part # | 03302594 |
| Country of OriginCountry of Origin is subject to change | UNITED STATES |
