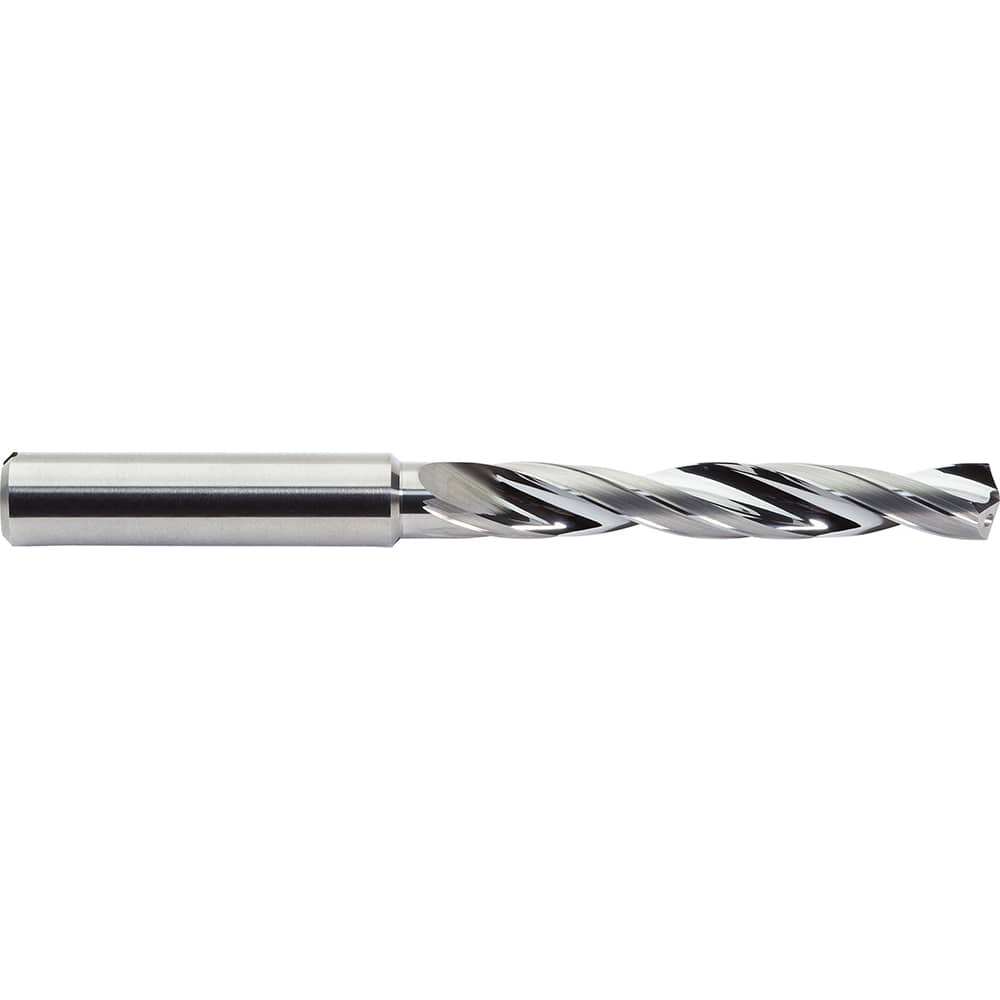

M.A. Ford - 1/4" 142° Solid Carbide Jobber Drill
Item #: 96139290
Brand: M.A. Ford
Model #: CDACR2500
Product Specifications
| Drill Bit Size (Inch) | 1/4 |
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Drill Point Angle | 142 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Uncoated |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (Inch) | 2.087 |
| Flute Length (Decimal Inch) | 2.0870 |
| Overall Length (Decimal Inch) | 3.58000 |
| Overall Length (Inch) | 3.5800 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Spiral Type | Right Hand |
| Specification Designation | DIN |
| Number of Flutes | 2 |
| Specification Number | DIN 6537 L |
| Series/List | CDACR |
