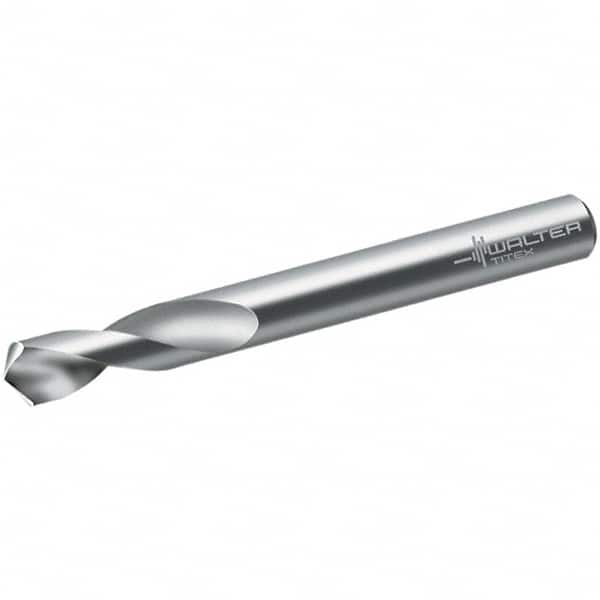

Walter-Titex - 1/4" Body Diam, 120°, 140mm OAL, High Speed Steel Spotting Drill
Item #: 53031332
Brand: Walter-Titex
Model #: 5153652
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Body Diameter (Inch) | 1/4 |
| Body Diameter (Decimal Inch) | 0.2500 |
| Drill Point Angle | 120 |
| Spotting Drill Material | High Speed Steel |
| Spotting Drill Finish/Coating | Bright |
| Overall Length (mm) | 140.00 |
| Flute Length (mm) | 20.00 |
| Flute Length (Decimal Inch) | 0.7874 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (mm) | 6.3500 |
| Length Designation | Standard |
| Cutting Direction | Right Hand |
| Tool Application | Spotting |
| Insertable Cutter Head | No |
| Tapered | No |
| Material Application | Aluminum; Cast Steel; Cobalt Alloys; Fiber Reinforced Plastics; Graphite; Grey Cast Iron; Iron Alloys; Malleable Cast Iron; Nickel Alloys; Non-Ferrous Metals; Plastics; Spheroidal Cast Iron; Stainless Steel; Steel |
| Material Application2 | Titanium; Titanium Alloys; Vermicular Cast Iron |
| Series/List | A1114L |
