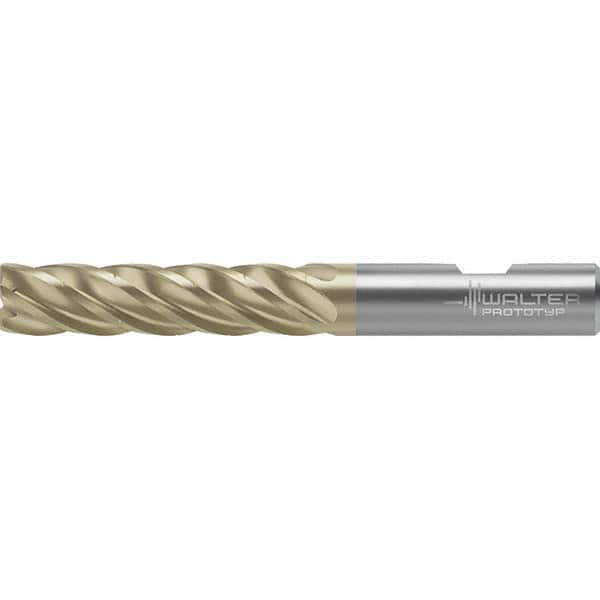

Corner Radius End Mill: 0.315″ Dia, 0.016″ Radius, 5 Flutes, Solid Carbide 35 ° Helix, Corner Radius End, Series MD133
Item #: 95981221
Brand: Walter-Prototyp
Model #: 7496811
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150 |
| Mill Diameter (mm) | 8.00 |
| Corner Radius (mm) | 0.40 |
| Length of Cut (mm) | 34.00 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 35 |
| Centercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 80.00 |
| Minimum Helix Angle | 35.00 |
| Maximum Helix Angle | 35.00 |
| Mill Diameter Tolerance | h10 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | WJ30RD |
| Series | MD133 |
| Single Or Double End | Single |
